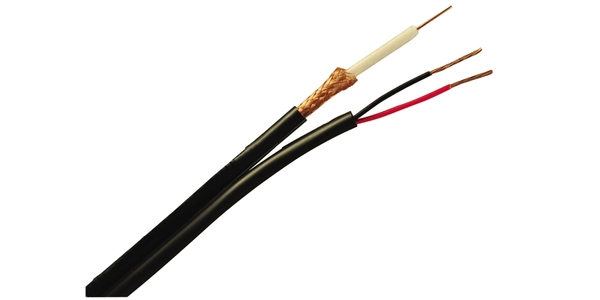

BELDEN 579945 - Camera Cable - PTZ (CCTV + Power/Audio)
305 Metre Roll
Product Code: CAB570
$180.00
Pay it in 4 payments of $45.00 with
Jump to:
BELDEN 579945 - Camera Cable - Coax + Power
305 Metre Roll
See attached Spec. sheet for extra Info.
Description25 AWG bare copper conductor, foam polyolefin insulation, bare copper braid shield, PVC jacket
Specifications:| Coax Construction | COAXIAL |
| Coax Type | COAX COMPOSITE DESIGNS |
| Conductor Type | SOLID CONDUCTOR |
| Conductor Material | BARE COPPER |
| Fire Rating | GENERAL PURPOSE (CM, CMG, CMX) |
| Impedance | 75 OHM NOMINAL IMPEDANCE |
| Dielectric Material | FPE-FOAMED (CELLULAR) POLYETHYLENE |
| Flooded | NO NOT FLOODED OVER BRAID |
| Jacket Material | PVC-POLYVINYLCHLORIDE, PVC-1 |
| Outdoor | NO NOT OUTDOOR GRADE MATERIAL |
| Screen/Shield Type | BRAID ONLY |
