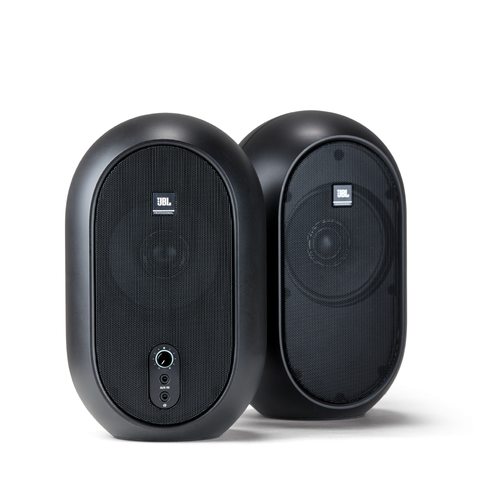

JBL 104 4.5in Powered Desktop Speaker Set
Product Code: JBL104
The JBL 104 4.5in Powered Desktop Speaker Set comprises a pair of monitors suitable for both consumer and critical referencing. These monitors employ a coaxial design to give you a smooth representation of the frequency spectrum, so that you have a more accurate picture of the sonic information coming your way. As such, these speakers are useful for home-recording studios, podcasters, video editors who pay attention to sound, and anyone looking for accurate, yet portable monitors.
A 4.5" low-frequency driver and a 0.75" high-frequency driver are situated in a coaxial design, while a 60W amplifier distributes 30W of Class-D power to each speaker. Set your monitoring level with the front-panel volume knob on the master speaker, and you'll find accurate sonic representation at any volume. The frequency response is 60 Hz to 20 kHz, but a low-frequency port ensures presence in the low registers to better judge bass content.
Inputs are made possible through balanced 1/4" jacks, a 3.5mm termination for auxiliary devices, or through unbalanced RCA connections. A front-panel headphone jack on the master speaker mutes the speakers and outputs signal directly to your favourite pair of cans. Included with the monitors are a 6.6' extension monitor speaker wire, a 3.5mm to RCA audio cable (perfect for stereo receivers, for example), and a power cable.
Key Features:- Coaxial 4.5" LF driver and 0.75" soft-dome HF driver
- Contoured low-frequency port
- Integrated 60W Class-D power amplifier
- 30 watts distributed to each speaker
- Acoustically optimised for desktop placement
- 3 sets of inputs allow connection with professional equipment, personal music players, and consumer products
- Front-panel volume control
- Front-panel headphone jack with speaker mute feature
| Studio Monitor | |
| Monitor Type | Active 2-Way |
| Enclosure | Bass-Reflex |
| Power Rating | 30 W RMS per Channel |
| Drivers | LF Driver: 1 x 4.65" / 118 mm Coaxial Dome HF Driver: 1 x 0.75" / 19 mm Coaxial Dome |
| Amplification | 2 x Full-Range Amplifier: Class-D Rated at 30 W1 x 60W CLass-D power distributed to each speaker |
| Performance | |
| Frequency Range | 60 Hz to 20 kHz |
| Maximum Sound Pressure Level (SPL) | 104 dBMomentary Peak |
| Signal-to-Noise Ratio | 75 dBA |
| Total Harmonic Distortion (THD) | <1% |
| Maximum Input Level | +6 dBV (Unbalanced) +20.3 dBu (Balanced) |
| Dispersion | 120 x 80° (Horizontal x Vertical) |
| Protections and Limiting | Limiter |
| Crossover | |
| Crossover Frequency | High-Pass Frequency: 1725 Hz, 6 dB/Octave Slope |
| Connectivity | |
| I/O | 2 x 1/4" TRS Balanced Female Analogue Input 2 x RCA Unbalanced Female Analogue Input 1 x 1/8" / 3.5 mm TRS Unbalanced Female Analogue Input 1 x 1/8" / 3.5 mm TRS Unbalanced Female Analogue Output |
| Power | |
| AC Input Power | 100 to 240 VAC at 50/60 Hz |
| General | |
| Enclosure Material | ABS |
| Dimensions (W x H x D) | 6.0 x 4.9 x 9.7" / 153.0 x 124.0 x 247.0 mm (Each) |
| Weight | 4.5 lb / 2.0 kg (Active Speaker) 3.8 lb / 1.7 kg (Passive Speaker) |
