UNI-T

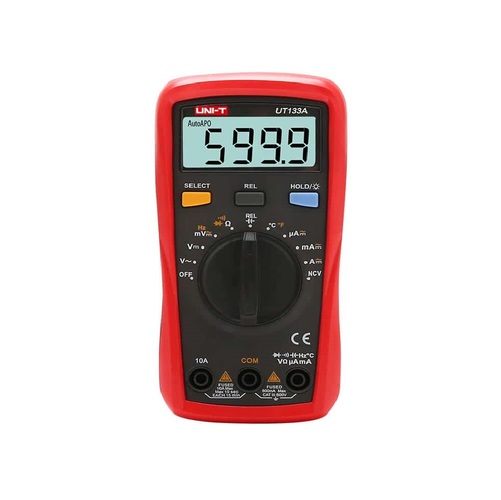

UT133A Auto Range Digital Multimeter
SKU: TT0133
Available
$49.50
Volume Pricing
Buy 1+
$49.50
(incl. GST)
Henderson
In Stock
Albany
In Stock
Highlights
- Palm Size & Versatile. UNI-T UT133A digital multimeter is a professional device designed for electric industry adopting intellectual ADC chip. Measure AC current up to 10A. ‒40℉~1832℉ (‒40℃~1000℃) temperature measurement.
- Auto ranging & 6000 Counts. Measures AC volt (600V), DC volt (600V), AC amp (10A), DC amp (10A), resistance, capacitance, frequency, temperature. Continuity buzzer. Diode test. LCD backlight. Data hold.
- Safe & Durable. IEC safety rated CAT III 600V. Provides overload alarm as well as electricity protection. Low battery indicator. Overload indication. NCV non contact voltage detection. Kickstand. Built-in test probe holder.
NZ-wide delivery available
UT133A Digital Multimeter
1. Over voltage/current audible alarm
2. High voltage warning
3. Auto power off (can be disabled)
4. Low power consumption
5. Fast and accurate capacitance measurement
6. 2m drop proof
| Specifications | Range | UT133A |
| DC voltage (V) | 600mV/6000mV/60V/600V | ±(0.5%＋3) |
| AC voltage (V) | 600V | ±(0.7%+3) |
| DC current (A) | 600uA/60mA/600mA/10A | ±(1%+3) |
| AC current (A) | 10A | ±(1.2%+3) |
| Resistance (Ω) | 600Ω/6000Ω/60kΩ/600kΩ/60MΩ | ±(0.8%+2) |
| Capacitance (F) | 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF | ±(4%+5) |
| Frequency (Hz) | 10.00Hz~1.000MHz | ±(0.1%+5) |
| Temperature (℃) | ‒40℃~1000℃ | ±(1%+4) |
| Temperature (℉) | ‒40℉~1832℉ | ±(1.5%+5) |
| Features | ||
| Display count | 6000 | |
| Range selection | Auto | |
| Diode | √ | |
| Continuity buzzer | √ | |
| NCV | √ | |
| LCD backlight | √ | |
| Test probe holder | √ | |
| Data hold | √ | |
| Low battery indication | √ | |
| Overload indication | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 56.8mm x 36.1mm | |
| Product color | Red and grey | |
| Product net weight | 255g (with batteries) | |
| Product size | 155mm x 76.5mm x 49mm | |
| Standard accessories | Manual, test leads, K-type thermocouple | |
| Standard individual packing | Gift box, English manual |
