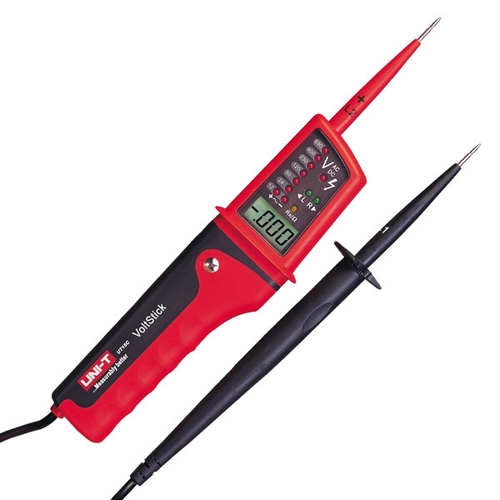

UT15C Voltage Tester Digital Meter Compact - Waterproof
While stocks last, final clearance RRP $59.99
Product Code: TT0015
$49.50
Pay it in 4 payments of $12.38 with
Jump to:
Clearance
Pen Type Voltage Detector with Torch LED 1.1" LCD Display Voltage Tester Phase Polarity AC DC Test Voltmeter UT15C
GENERAL CHARACTERISTICS
Specifications
| Technical Functions/ Features | UT15C |
|---|---|
| Voltage LED Steps (AC/D) | 12V: between 0 to 12V LED will illuminate24V: between 19V ± 2V LED will illuminate50V: between 48V ± 6V LED will illuminate120V: between 110V ± 20V LED will illuminate230V: between 200V ± 20V LED will illuminate400V: between 340V ± 30V LED will illuminate690V: between 520V ± 30V LED will illuminate |
| Continuity Test | Range 0 to 100kΩ. The continuity LED will illuminateand buzzer will sound. |
| Phase Rotation Test | 50Hz to 60Hz |
| Range Selection | Automatic |
| Polarity Detection | Positive & Negative |
| Low Battery Display | Short circuit two leads, LED and beeper do not on that meansthe battery is low |
| Torch | Yes |
| Single Lead (L2) VoltageDetection | It is intended only as a quick check. 100V to 690V;50Hz to 400Hz |
| : | |
| LCD display (AC/DC) | 24V to 690V: ±(3%+5) |
| Power | 1.5V Battery (AAA) x 2 |
| LCD Size | UT15C - 23 x 12mm |
| Product Color | Red and Grey |
| Product Net Weight | 210g |
| Product Size | 275 x 51 x 30mm |
| Standard Accessories | Batteries, English Manual |
| Standard Individual Packing | Blister |
| : | |
| : | |
| : | |
