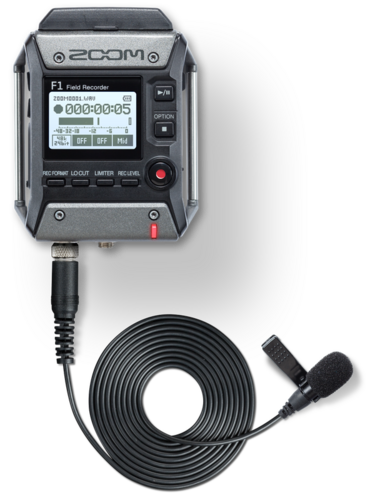

Zoom F1 Recorder with Lavaliere Mic
Product Code: ZOOMF1-LP
$295.00
Pay it in 4 payments of $73.75 with
Whole Zoom Product range is available, if something is not listed please ask us
OverviewThe Zoom F1 Field Recorder + Lavalier Mic is perfect for videographers who need to capture the nuance of every word with professional quality audio.
Combining the two-channel F1 audio recorder with the Zoom LMF-1 omnidirectional lavalier microphone. It's low-profile design attaches neatly to belts or waistbands, and fits inside pockets without being seen. The F1 provides videographers, vloggers, and journalists with a solution to capture high-quality audio for video, no matter how far away the subject is from the camera.
Equipped with a stereo 3.5mm mic/line input that delivers plug-in power to small microphones, and a proprietary 10-pin connector compatible with all optional Zoom microphone capsules. It records stereo audio up to 24-bit/96 kHz in BWF-compliant WAV or a variety of MP3 formats, directly to microSD or microSDHC cards.
A series of one-touch buttons gives you quick access to record level, limiter control, lo-cut filter, and volume output. As well, a 3.5mm stereo phone/line output jack, dedicated volume control and monochromatic LCD display, which is easy to read even in bright sunlight.
Essential features for videographers include a tone generator for setting levels, sound markers for aligning audio and video, on-board limiter to keep your levels in check when loud spikes in volume occur and a Rec Hold function to avoid accidental operation of buttons.
The micro-USB port allows for data exchange to and from a computer and also enables the F1 as an audio interface with a computer or iOS device.
Powered by 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or an AD-17 AC adapter (not included) offers a run time of up to 10 hours. The unit ships with a windshield, mic clip, and a belt clip.
Key Features- Two-channel recorder
- Includes LMF-1 omnidirectional lavalier microphone
- Lightweight and low-profile design—attaches to belts and waistbands, or fits inside pockets without being seen
- Compatible with all Zoom microphone capsules
- Supports up to 24-bit/96 kHz audio
- Broadcast WAV format (BWF)—files are automatically time-stamped
- Multiple MP3 formats
- One-touch button controls
- 1.25" monochromatic LCD display can be read under bright light
- Record Hold function to avoid accidental operation of buttons
- Stereo 3.5mm mic/line input jack with plug-in power (2.5V)
- Stereo 3.5mm phone/line output jack with dedicated volume control
- Built-in limiter and auto level control to avoid clipping
- Low-cut filter
- Pre-Record function
- Tone generator for calibrating audio levels between the F1 and a DSLR video camera without the need for an attenuation cable
- Sound marker function outputs quick tone for syncing audio and video
- Records directly to microSD and microSDHC cards up to 32 GB
- Micro-USB port for data exchange to and from computer
- Use as an audio interface to record directly to your computer or iOS device
- Runs on two standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AD-17 AC adapter (available separately)
- Up to 10 hours of operation with alkaline batteries (when using lavalier)
- Includes windscreen, belt clip, mic clip
Type | 2-channel audio recorder |
Recording Formats | WAV 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit BWF-compliant MP3 48, 128, 192, 256, 320 kb/s Mono/stereo ID3v1 tags supported |
Recording Media | microSD and microSDHC cards (Class 4 or higher, up to 32 GB) |
Inputs | Mic In Proprietary 10-pin connector, compatible with all Zoom mic capsules Mic/Line In Connector: 1/8" / 3.5 mm stereo mini, with screw lock Plug-In Power: 2.5 V Input gain: −12 dB to +36 dB Input impedance: 2 kOhms or more |
Outputs | Connector: 1/8" / 3.5 mm stereo mini, with screw lock Maximum Output Level: 2 x 11 mW (into 32 Ohms load) |
Lavalier Microphone | Type: LMF-1 Polar Pattern: Omnidirectional Plug: 1/8" / 3.5 mm stereo mini, with screw lock Sensitivity: -32 dB/1 Pa at 1 kHz Maximum Sound Pressure Input: 115 dB SPL Cable Length: 5.2" / 160 cm |
USB | Connector Micro-USB Mass Storage Operation USB 2.0 high-speed Audio Interface Operation 2 x in / 2 x out 44.1 kHz/16-bit, 48 kHz/16-bit USB class-compliant Transfer method Asynchronous |
Power | 2 x AAA batteries, alkaline, NiMH, or lithium AD-17 AC adapter (available separately): 5 VDC / 1 A |
Recording Time | With Lavalier Mic (48 kHz/24-bit, Mono, Plug-In Power On): Alkaline Batteries: 10 hours, approximately NiMH Batteries (750 mAh): 9 hours, approximately Lithium Batteries: 16 hours, approximately |
Display | 1.25", LCD monochrome |
Dimensions (W x D x H) | 64.0 x 79.8 x 33.3 mm |
Weight | 120.0 g (without batteries) |
