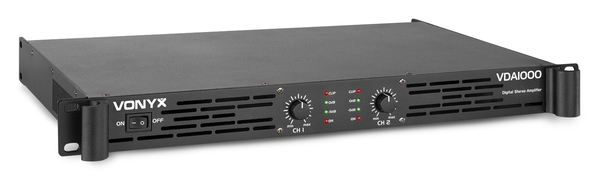

VDA1000 PA Amplifier 1U 2x 500W

Vonyx latest amplifier design! The VDA-series are super compact stereo power amplifiers in a 1U rack-mountable housing. Silent operation and a low weight which make this series suitable for both fixed installations and mobile applications. These Class D amplifiers will give you the sound output you need in fixed installations in small to medium venues, for musicians or in your studio.



  • 1000W Class-D amplifier
  • Compact lightweight design
  • XLR and 6.3mm Jack Combi inputs
  • NL-4 speaker outputs
  • LED VU for indicating overload
  • Suitable for 19" rack mounting (1U)
Specifications
Output channels 2
Output power 1000W
Speaker Connections Speaker 4-pin
Input Connections 6.3 mm jack, XLR (3-pin)
Output Connections - can pick multiple NL-4
Frequency Response 20Hz - 20.000Hz
THD <0,5%
Signal-to-noise ratio >95dB
Distortion >98dB
Input Sensitivity Line 775mV
Input impedance 10kOhm
Power Supply 240VAC 50Hz
Dimensions (L x W x H) 290 x 483 x 55mm (45 without feet)
Is the item 19"? Yes
Weight (kg) 3,10

Pdficon Info / Manual
