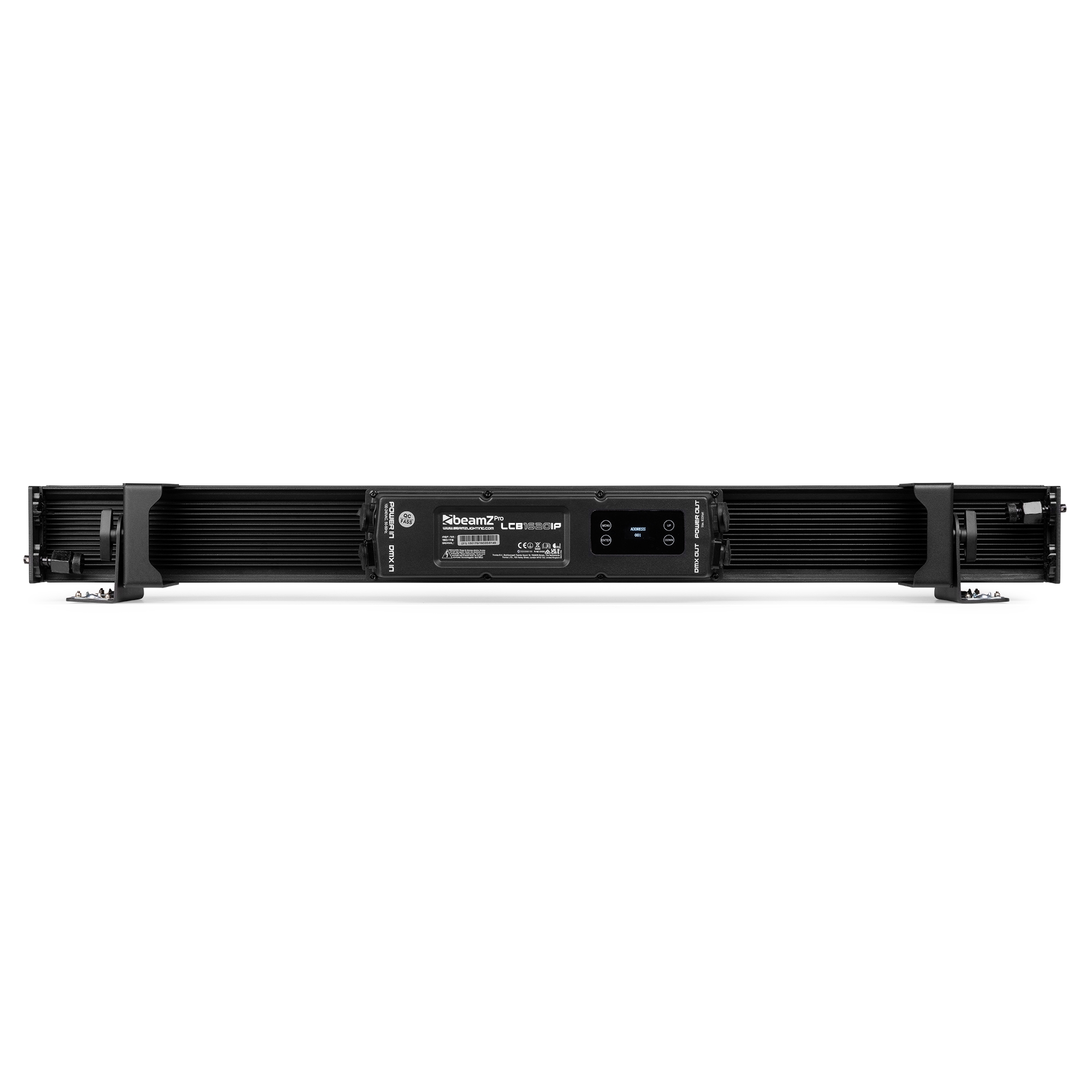

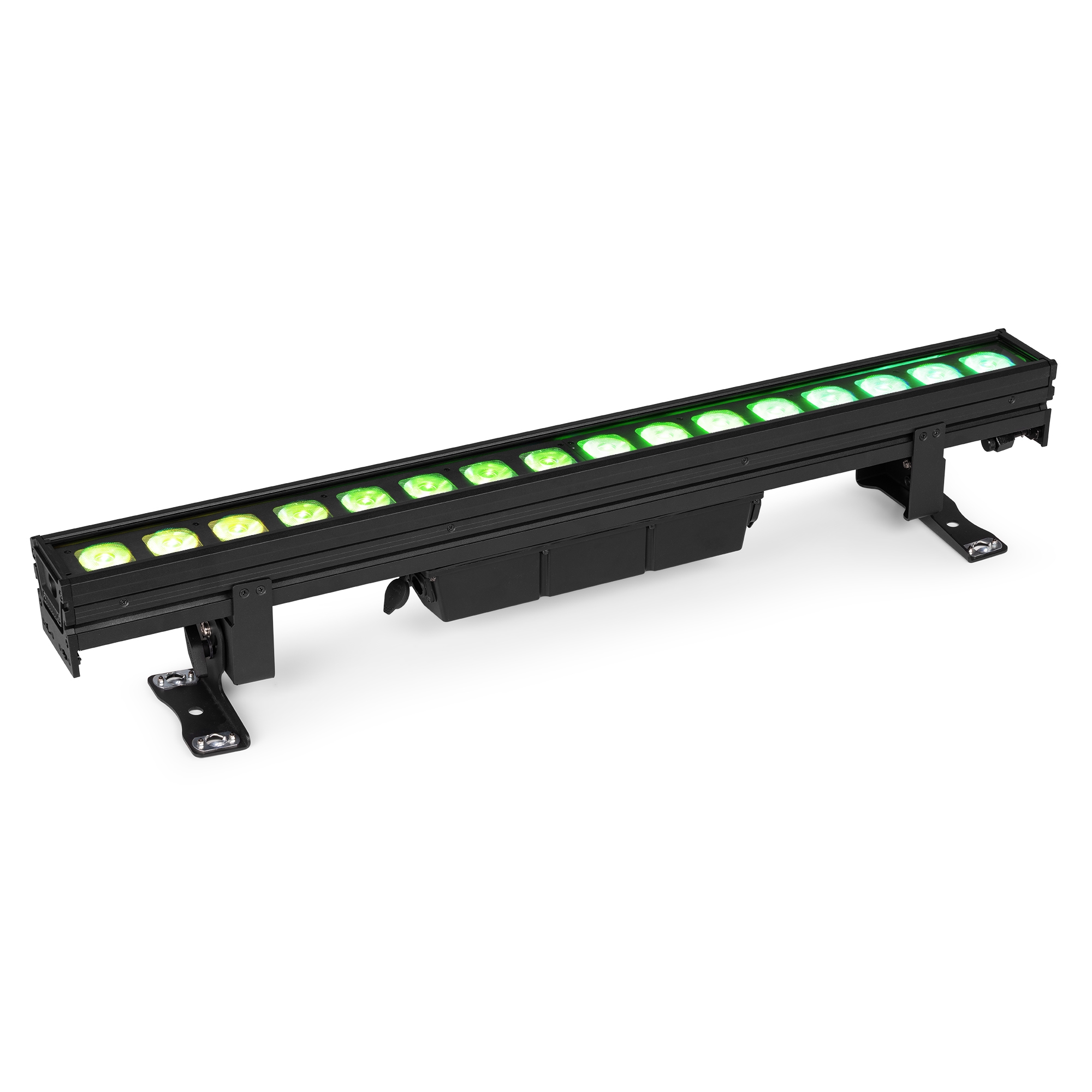

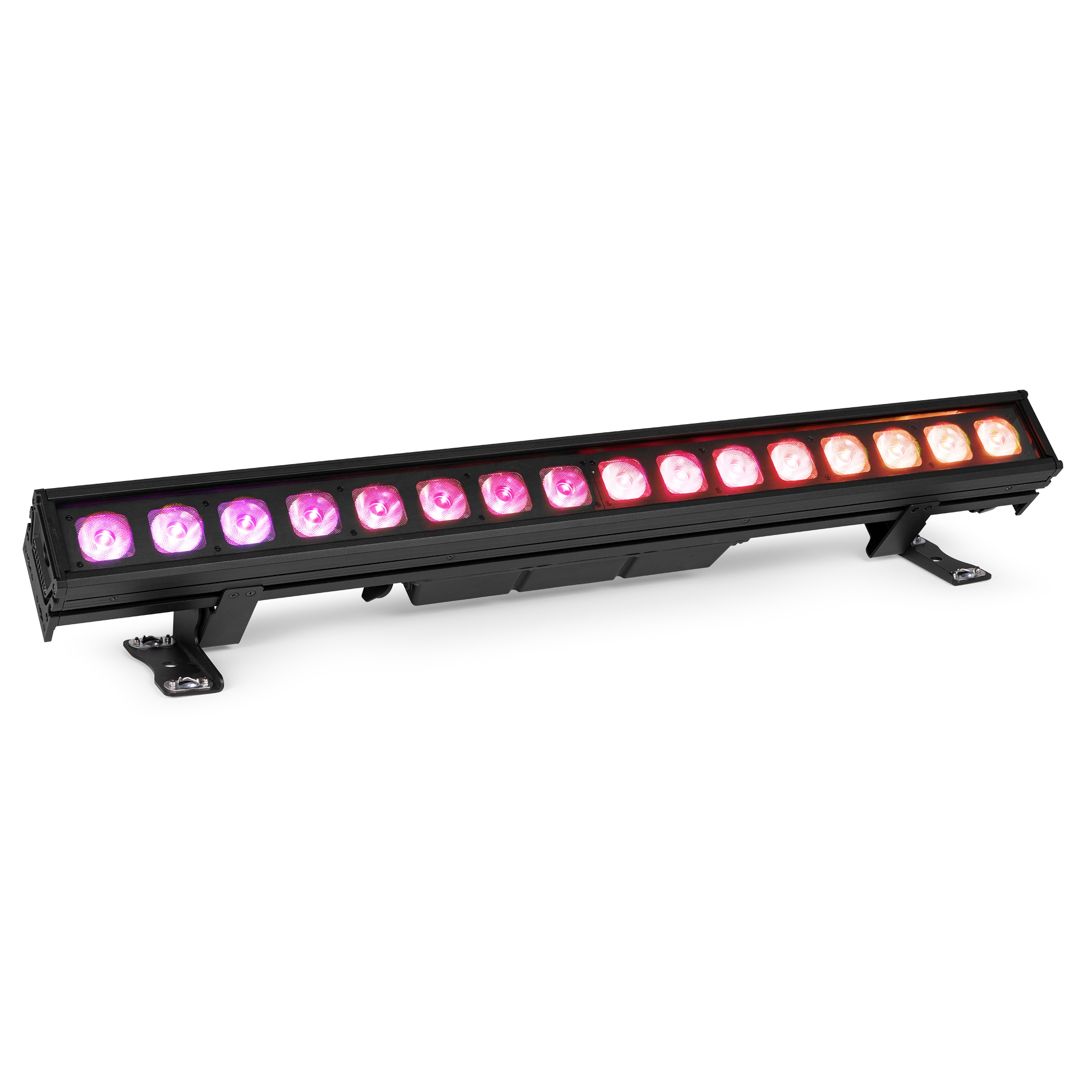

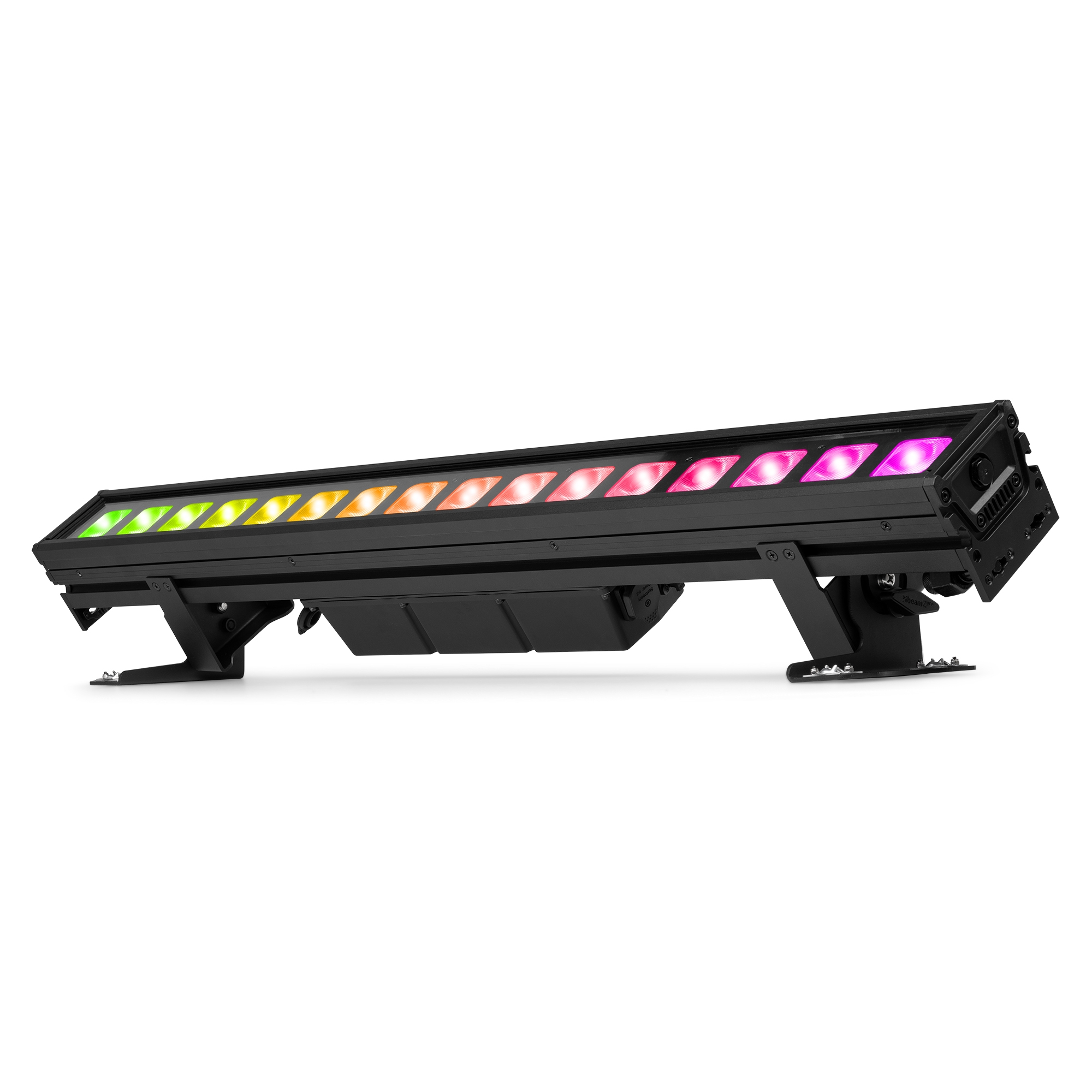

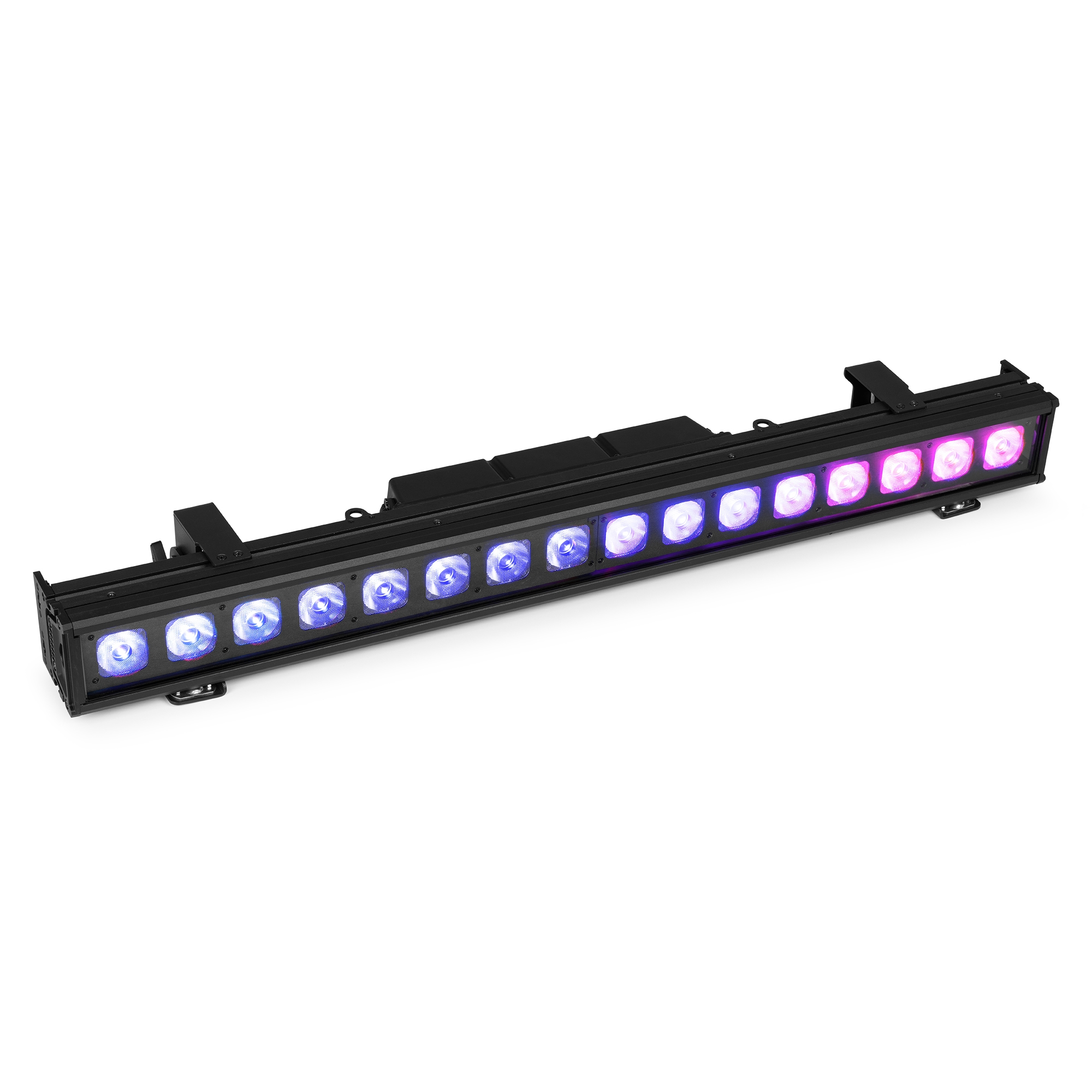

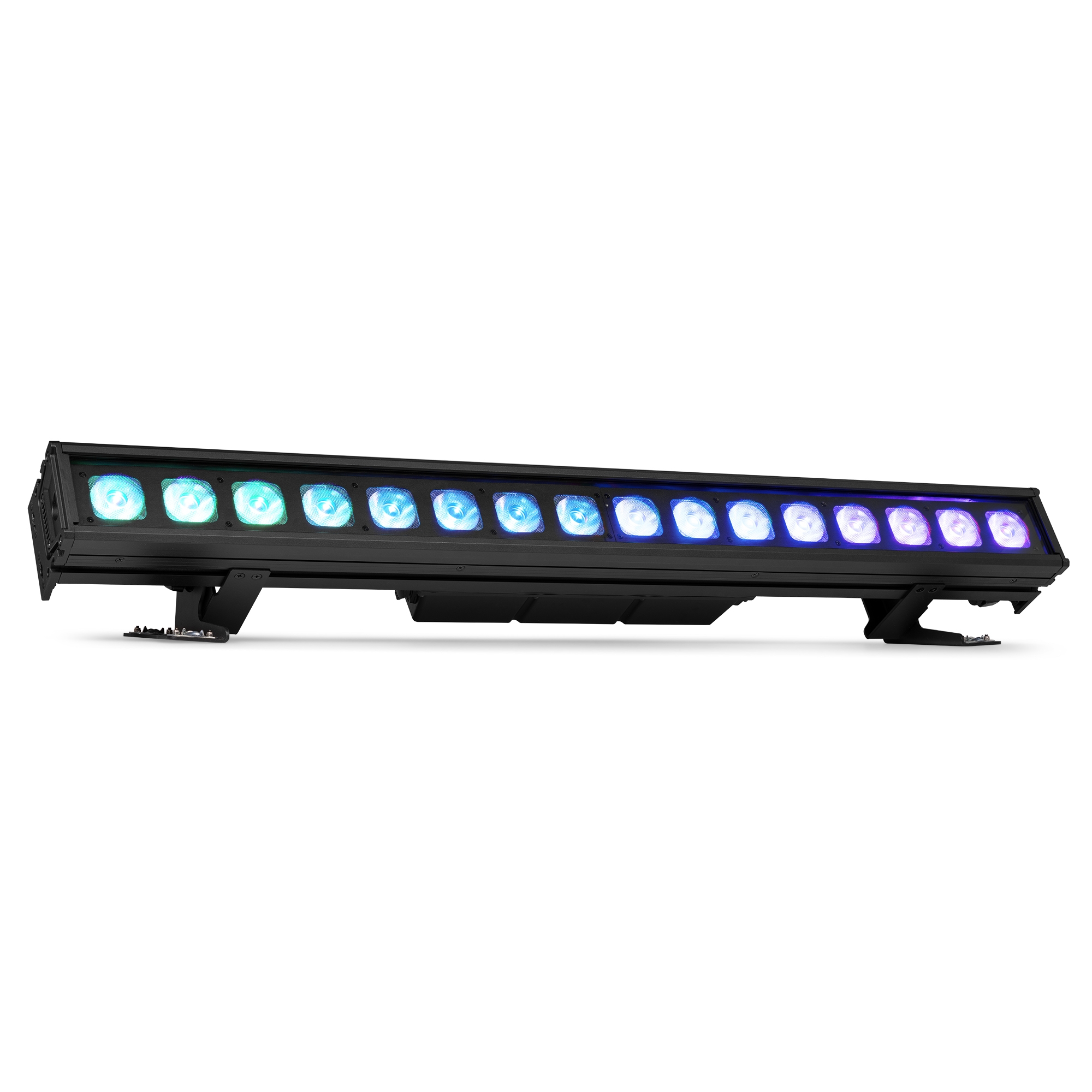

LCB1620IP LED Bar IP65 16x 20W RGBL
Product Code: 150.176
LCB1620IP LED Bar IP65 16x 20W RGBL
The LCB1620IP is a high-performance outdoor LED bar designed for professional touring, architectural lighting and stage applications. Equipped with 16× 20W RGBL 4-in-1 LEDs, this fixture delivers exceptional output, superior colour mixing and precise pixel control. Its IP65-rated aluminium housing makes it ideal for permanent installations and demanding outdoor environments.
Multiple operational modes, including DMX, RDM, Auto, Master/Slave and Stand-alone, provide full flexibility, while the selectable PWM frequencies up to 20kHz ensure flicker-free operation for film and broadcast. With advanced built-in effects, smooth dimming curves and a robust thermal management system, the LCB1620IP offers professional reliability in any scenario.
- High-performance outdoor LED bar
- 16× 20W RGBL 4-in-1 high-power LEDs
- IP65-rated aluminium housing for outdoor use
- Full pixel control with multiple DMX channel modes
- RDM compatible for remote configuration
- Smooth 16-bit dimming with multiple curves
- Selectable PWM frequencies up to 20kHz (flicker-free)
- Built-in auto programs, chases and colour macros
- Static colour and custom colour calibration modes
- Strobe effects with multiple patterns
- Natural convection cooling (silent operation)
- OLED display with 4-button touch interface
- Master/Slave and Stand-alone operation
- Rugged IP-rated connectors for power and DMX
- Including brackets with Quicklock
Specifications
| BrandbeamZ Professional | |
| Product serieLCB-IP series | |
| ColourBlack | |
| Product colour Black | |
| Light source 4-in-1 LED | |
| Colours Red, Green, Blue, Lime | |
| LED power (single LED) 20W | |
| Quantity of LEDs 16 | |
| Beam angle 21° | |
| Field angle 30° | |
| Illuminance 30.811 lx @ 1m | |
| Flash rate per second 1 - 25Hz | |
| Modes Automatic programs, DMX, Master/Slave | |
| RDM Yes | |
| DMX channels 3, 4, 5, 10, 14, 22, 38, 48, 64, 70 | |
| DMX connection 5-pin XLR | |
| IP rating IP65 | |
| Cooling Convection | |
| Display oLed | |
| Power plug P-Con TR1 | |
| Power consumption 2.94 - 1.40A | |
| Power supply 240VAC 50Hz | |
| Dimensions (L x W x H) 1000 x 150 x 170mm | |
| Weight (kg) 9,35 | |
| Included accessories Mounting bracket, Power cable |
