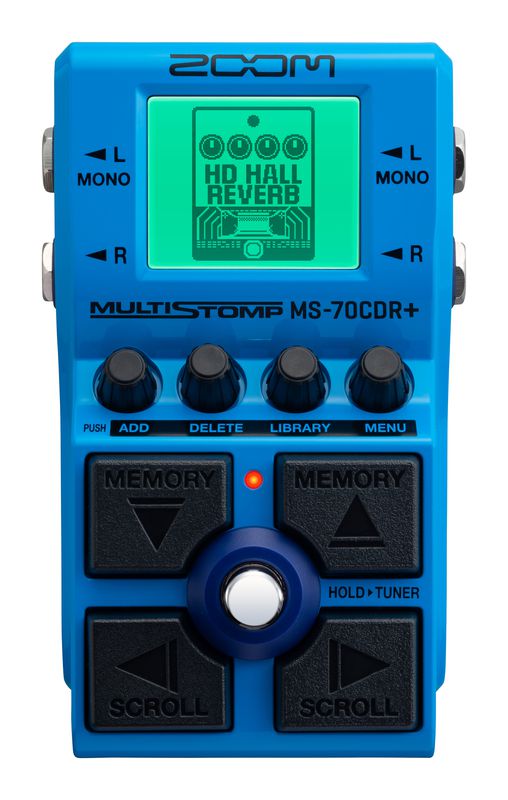

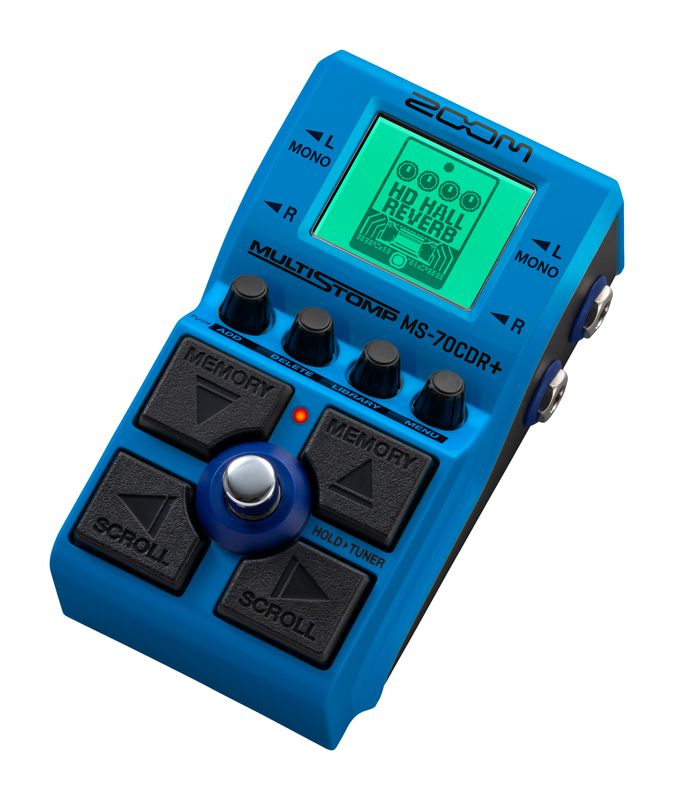

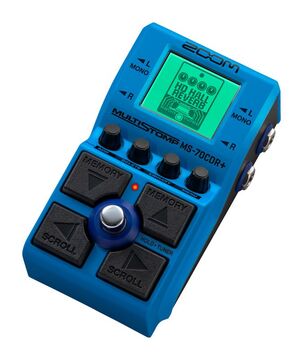

Zoom MS-70CDR+ MultiStomp - Chorus, Delays & Reverb
Product Code: ZOOMMS-70CDR+
The Zoom MS-70CDR+:
Your New Modulation Station
Your New Modulation Station
The MS-70CDR+ gives musicians 149 spatial effects ranging from lush choruses to crystal-clear delays to atmospheric reverbs. This single stompbox can shape your tone and provide endless depth and textures.
- 140+ guitar and bass effects, including modulation, chorus, delay, and reverb
- Use up to 6 effects at the same time
- 100 Patch slots with 80 presets
- Analog circuit with minimal sound deterioration
- Single stompbox design
- Stereo input and output supports effects like stereo chorus and delays
- 4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
- Improved UI for easier navigation and control
- Color coded LCD backlight for selected effect category
- Runs on 2 AA batteries or AC Adapter
Specifications
| Maximum number of simultaneous effects 6 effects | |
| User patch memories 100 | |
| Sampling frequency 44.1 kHz | |
| A/D conversion 24-bit 128× oversampling | |
| D/A conversion 24-bit 128× oversampling | |
| Signal processing 32-bit | |
| Frequency response 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load) | |
| Display 160×128 dot-matrix LCD | |
| Inputs L/R Standard mono phone jacks Rated input level | −20 dBu Input impedance (line): 470 kΩ |
|---|---|
| Outputs L/R Standard mono phone jacks Maximum output level | +7.2 dBu (when output impedance 10 kΩ or higher) |
| Input S/N 122 dB | |
| Noise floor (residual noise) L/R –100 dBu | |

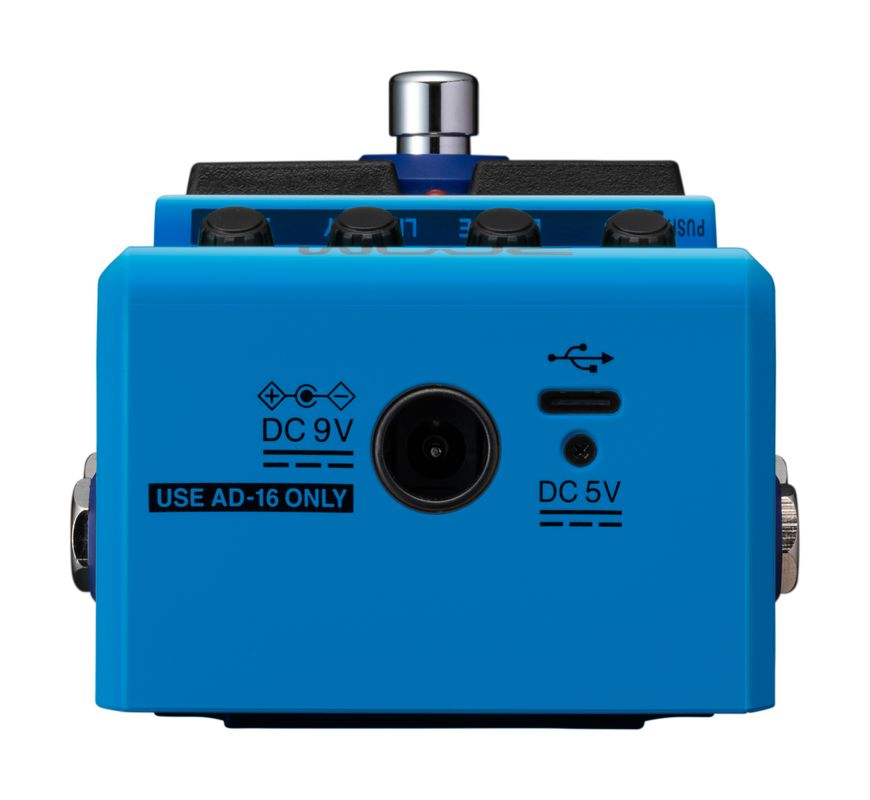

| Power AC adapter | 9V DC 500mA center negative (ZOOM AD-16) 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries) |
| Estimated operation times • These values are "approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions." Alkaline batteries | about 7 hours (about 5 hours using using batteries) NiMH batteries (1900 mAh): about 6.5 hours (about 5 hours using stereo input) Lithium batteries: about 14 hours (about 10 hours using stereo input) |
| USB Port | USB 2.0 Type-C / Supported cable type: Type-C Handy Guitar Lab: USB 1.1 Full Speed • Use a USB cable that supports data transfer. USB bus power is supported. |
| Dimensions 133 mm (D) × 79 mm (W) × 61 mm (H) | |
| Weight 368 g (excluding batteries) 415 g (including batteries) | |
| Note | 0 dBu = 0.775 V |
