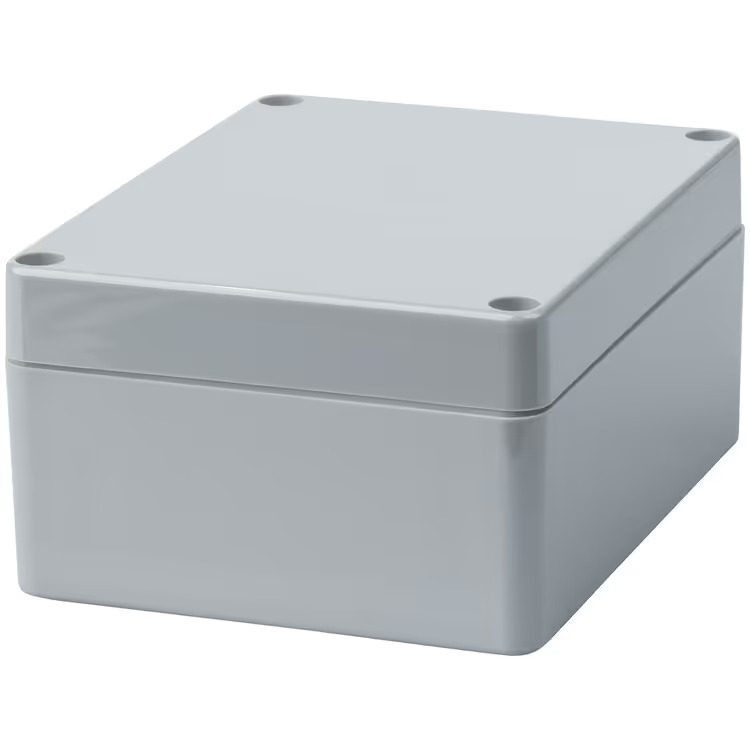

Sealed ABS Enclosure - 115 x 90 x 55mm
Product Code: EHB6126
Features:
- Operating temperature: -20 to 80 degrees

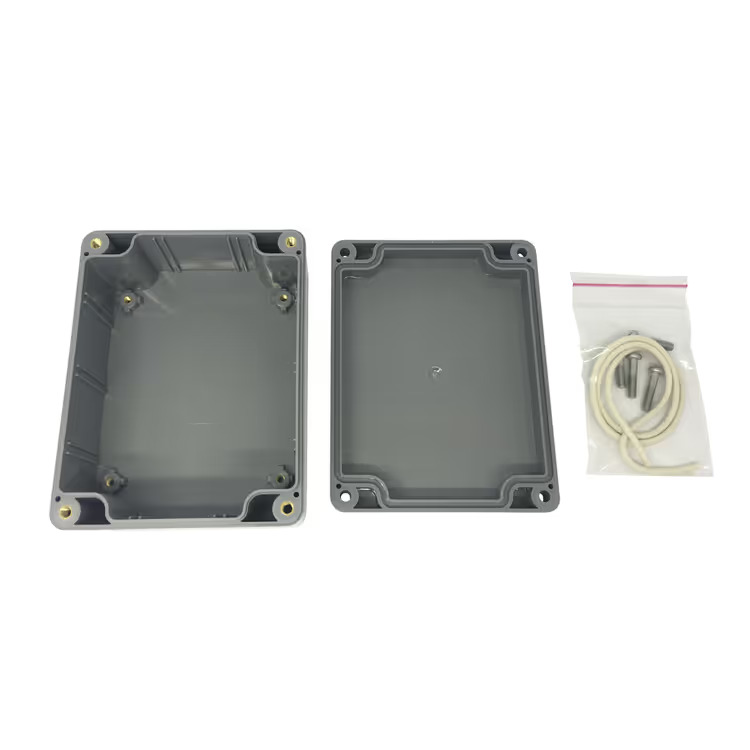

- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing systemwith a EPDM gasket
- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
Specifications
| Material ABS Plastic (Acrylonitrile Butadiene Styrene) | |
| PCB Internal Guide Slots true | |
| Internal Mounting Posts true | |
| Gasket sealing system true | |
| Gasket Material Neoprene | |
| Lid Screws 4.0pc | |
| Ventilation Holes false | |
| Colour Dark Grey | |
| IP Rating IP65 | |
| Dust/Particle Ingress Protection 6 - Dust tight, no ingress of dust | |
| Liquid/Moisture Ingress Protection 5 - Water jets | |
| Width 115.0mm | |
| Height 55.0mm | |
| Depth 90.0mm | |
| Packaged Dimensions 12.8cm(Length) x 10.2cm(Width) x 6.2cm(Height) |
