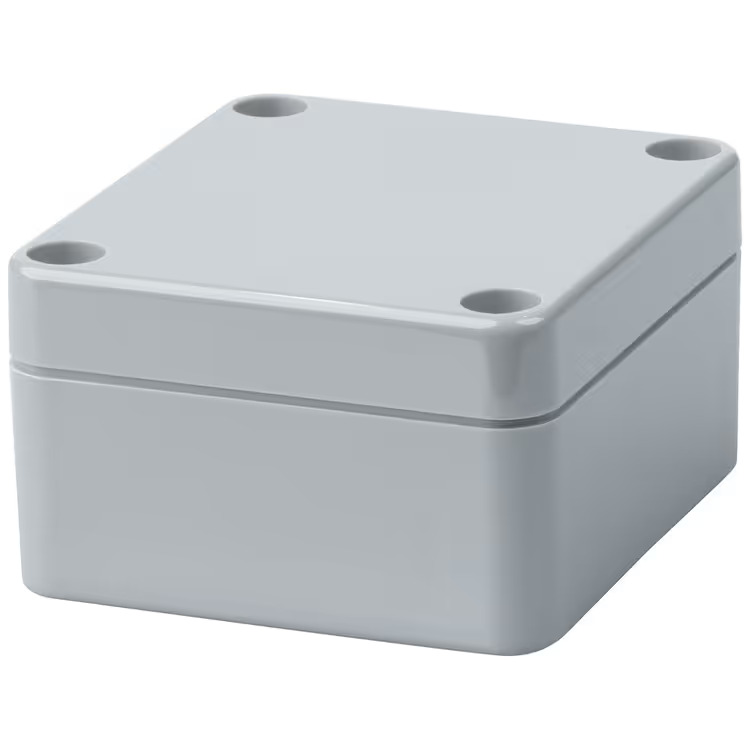

Sealed ABS Enclosure 64 x 58 x 35mm
Product Code: EHB6120
Features:
- Operating temperature: -20 to 100 degrees

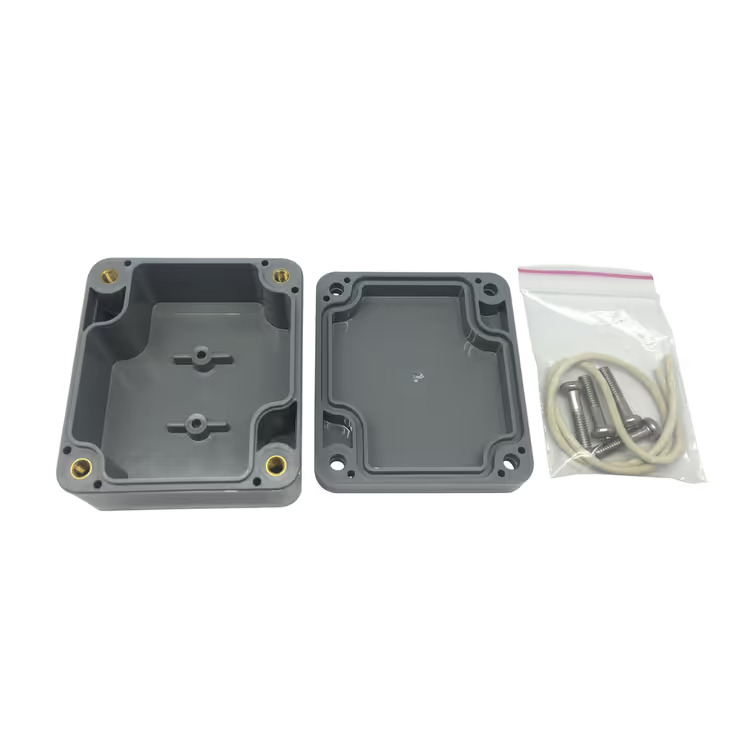

- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing system with a EPDM gasket- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area.
Specifications
| Material ABS Plastic (Acrylonitrile Butadiene Styrene) | |
| PCB Internal Guide Slots true | |
| Internal Mounting Posts true | |
| Gasket sealing system true | |
| Gasket Material Neoprene | |
| Lid Screws 4.0pc | |
| Ventilation Holes false | |
| Colour Dark Grey | |
| IP Rating IP65 | |
| Dust/Particle Ingress Protection 6 - Dust tight, no ingress of dust | |
| Liquid/Moisture Ingress Protection 5 - Water jets | |
| Width 64.0mm | |
| Height 35.0mm | |
| Depth 58.0mm | |
| Packaged Dimensions 6.5cm(Length) x 5.8cm(Width) x 3.6cm(Height) |
