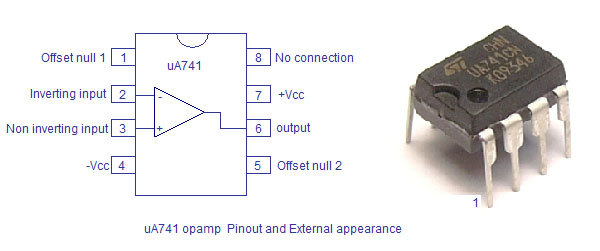

UA741 DIP8

DESCRIPTION
The UA741 is a high performance monolithic oper-
ational amplifier constructed on a single silicon
chip. It is intented for a wide range of analog appli-
cations.
n
Summing amplifier
n
Voltage follower
n
Integrator
n
Active filter
n
Function generator
The high gain and wide range of operating voltag-
es provide superior performances in integrator,
summing amplifier and general feedback applica-
tions. The internal compensation network (6dB/
octave) insures stability in closed loop circuits.
ORDER CODE
N =
Dual in Line Package (DIP)
D =
Small Outline Package (SO) - also available in Tape & Reel (DT)
PIN CONNEC
