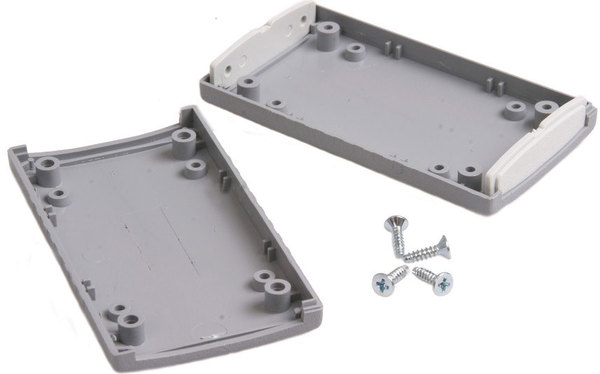

Plastic Molded Enclosures Dark Grey ABS -
90 x 50 x 16mm
Product Code: G0401
400 Series - Plastic Molded Enclosures Dark Grey ABS - 90 x 50 x 16mm
HB6030
- High impact ABS with the base and lid moulded in light gray with dark gray end panels
- Ideally suited for instrumentation and telecommunication equipment from hand held to lab and desk top
- These cases have a two part design with a tongue and groove joint between the top and bottom of the case, with specially designed end panels of the same material
- Optional aluminium end panels are available on quantity orders
- Designed to IP54 of IEC 529- The top & bottom is lightly textured which gives a non
- scratch surface & maintains the high quality finish
- There are guide slots provided for vertical mounting of PCBs
- Bosses are provided for the horizontal mounting of PCBs
- Four M- 3 screws hold the case togetherFlame Retardent to UL94 VO
Width Depth Height 90 50 16mm
