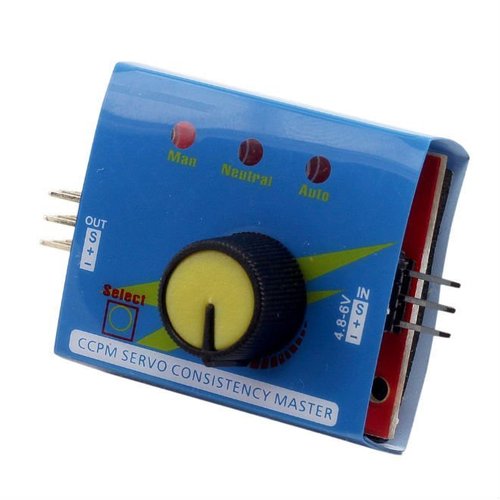

Servo Tester CCPM Consistency Master Checker

3CH Channels ESC

Product Code: MOD0140

$9.50

Pay it in 4 payments of $2.38 with Afterpay

Buy 1+ $9.50 (incl. GST)
Buy 5+ $9.00 (incl. GST)

Multi Servo tester 3 Channels CCPM Meter Checker 4.8 6V



Product Feature:

  • CCPM Servo Consistency Master / Servo tester

  • The device also can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.

  • There are 3 modes to check servos or ESC:

  • Manual mode: turn the knob with different speed, check the reaction time.

  • Neutral mode: make the servo go back to the neutral point.

  • Automatic "window wiper" mode: make the servo swing like a window wipers in the biggest angle.

  • It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.

  • You can also connect 1-3 ESC to test and compare their reaction time respectively.

  • It can connect 3 servos of the CCPM helicopters and select servos.

  • It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.

  • Voltage consumption: DC4.8-6V

  • Size: 48 x 42 x 17mm

  • Weight: 31.5 g
