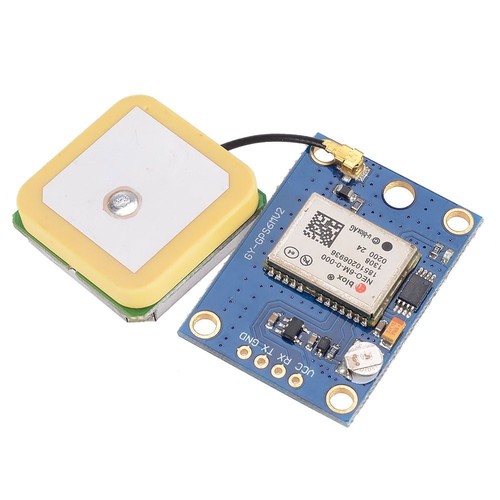

GPS Module For Arduino With Antenna

Ublox NEO-6M V2

Product Code: MOD0650

$15.50

Pay it in 4 payments of $3.88 with Afterpay

Store Stock:
Henderson In Stock
Albany Low Stock - call to confirm

1x Ublox NEO-6MV2 GPS Module and Antenna For Arduino

Easy connect to Arduino only 4 connections required RXD, TXD, VCC, and GND.
Has detachable antenna included

Ublox NEO6MV2 GPS Module Aircraft Flight Controller for Arduino

Power supply: 3-5V

Models: GY - GPS6MV2

The LED signal lights

The default baud rate: 9600

Module size: 25 mm x35 mm

The antenna size: 25x 25 m


* 3V-5Vpower supply
* with detachable ceramic antenna,
* Under 1 second time-to-first-fix for hot starts
* SuperSense ® Indoor 162 dBm tracking sensitivity
* Anti-jamming technology
* Support SBAS (WAAS, EGNOS, MSAS, GAGAN)
* 50 channel positioning engine with over 2 million effective correlators
* Timepulse
* 5Hz position update rate
* Operating temperature range: -40 TO 85°C
* EEPROM power down to save the configuration parameters data
* LED signal indicator
* With data backup battery
* The default baud rate: 9600

How to http://arduinostuff.blogspot.co.nz/2014/05/neo6mv2-gps-module-with-arduino-uno-how.html

Contains:

1x NEO6MV2 GPS Module
