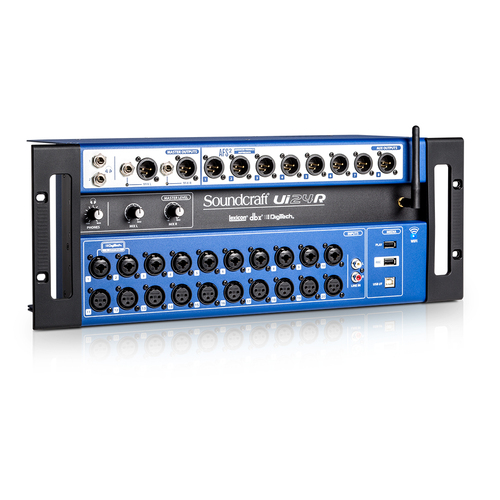

24-channel Soundcraft Ui24R Digital Mixer with Wireless Control
Product Code: JUI24R
New Ui24R v3.0 Firmware Available Now
With the free v3.0 firmware update, the Soundcraft Ui24R has been enhanced with Cascading and a number of other significant new features.
Cascading enables you to connect two Ui24R systems via Ethernet to expand your mixing capability with a new 32x32 bi-directional audio bus. Add a second Ui24R to double your mic inputs or connect two Ui24R mixers and control two fully independent mixes, such as FOH and monitors, or FOH and streaming mixes.
Features in the free 3.0 fimware update:
- Cascading: Double your inputs or double your mixes
- Cue Recall: save mix settings as Cues and then quickly and seamlessly recall them
- UDP Control Recall: for triggering lighting control snapshots
- Lexicon Reverb PreDelay: easily set the time before first surface reflections and simulate desired acoustic environments
- More than 25 new supported touch screens
- And more, described in the downloadable Ui24R 3.0 Firmware Addendum document
The Soundcraft Ui24R is a complete, rack-mountable, digital mixing and multi-track recording system that delivers flexible I/O, pristine sound quality, intuitive wireless control, and roadworthy reliability—all in a streamlined design. The system can double as a stagebox and can be controlled by up to 10 devices via Ethernet or built-in dual-band Wi-Fi, making it possible to control mixing and multi-track recording wirelessly from anywhere in the venue. Renowned Lexicon, dbx and DigiTech signal processing ensures pristine sound, while 20 Studer-designed microphone preamps deliver more professional inputs than any other mixer in its class. The compact, rack-mounted Ui24R is also compatible with the new HARMAN Connected PA system, and offers unprecedented control, versatility and power at an incredible value. From the stage to the studio, Soundcraft Ui24R is the ultimate system for artists, venues and engineers who need to save space and deliver superior sound.
HARMAN Sound Quality and Reliability
Ui24R brings together industry-leading HARMAN technologies to deliver unprecedented power and mission-critical stability. Renowned Studer preamps deliver rich sound for live performance and multi-track recording, while iconic Lexicon reverbs, choruses, delays, and dbx compression offer polished results for vocals, acoustic guitar and more. dbx AFS2 automatic feedback suppression is available on all monitor outputs, providing an excellent live experience. Plus, DigiTech guitar amp modeling brings a host of effects to any performance, particularly when low stage volume is desired.
More Ways to Connect
When you need a mixer with comprehensive connections and a compact footprint, Ui24R provides the perfect, streamlined solution. The Ui24R allows you to mix from multiple sources including 10 combo 1/4"-TRS/XLR, 10 XLR, 2 line level inputs, and 2 channels of digital USB playback for a total of 24 channels. With its flexible and high-quality I/O, Ui24R gives venues, bands and engineers room to grow, with expanded creative options.
More Ways to Control
Control Ui24R from the device of your choice (tablet, phone, PC, Mac) via iOS, Android, Windows, Mac OS and Linux browsers, without installing apps. Onboard dual-band WiFi ensures you (and up to 9 members of the band) can always stay in control without relying on an independent router or the venue’s WiFi. Musicians can adjust their individual mix on stage while the FOH engineer optimizes the audience experience.
Multi-track Recording and Playback
Ui24R is more than just a complete mixing system—it’s also a top-notch recording tool. Enjoy peace of mind with dual-path, multi-track recording of all 22 inputs and your stereo mix, directly to a USB storage drive AND a connected computer. The multi-channel USB audio interface also makes it easy to integrate the Ui24R into your recording studio for production work with your favorite DAW.
Traditional mixers offer lots of functionality, but can only be controlled from the mix console position. The Ui24R surfaceless mixer combines the power and versatility of a large-format console with a compact design and complete Wi-Fi control. With Ui24R, you can finally have the features you need, plus the freedom to control your mixer from anywhere in the venue.
Compatible with HARMAN Connected PA
The Ui24R mixer’s embedded ioSYS technology enables easier setup and control when used with the HARMAN Connected PA app and compatible products. Connected PA delivers seamless plug-and-play operation with a variety of HARMAN equipment and enables you to control your entire live sound system with one app. Products within the Connected PA system self-identify and retain presets for effortless setup, and setup wizards help you quickly optimize volume, configuration settings and sound quality. Current products with embedded ioSYS technology and HARMAN Connected PA compatibility include the Soundcraft Ui-series mixers, JBL PRX800 loudspeakers, dbx Di1 direct boxes, and P5i microphones and the MDAi dynamic microphone adapter.
Renowned Soundcraft quality and performance
Built-in dual-band Wi-Fi eliminates the need for a router to provides a reliable connection to up to 10 mobile devices in mission critical situations
Control Ui24R from iOS, Android, Windows, Mac OS and Linux browsers without installing additional apps
Record and mix with the warmth of 20 professional-quality Studer-designed preamps
dbx compression and iconic Lexicon reverb and delay processing
2 channels of DigiTech guitar amp modeling
Dual-path, redundant multi-track recording of all 24 inputs to USB drive and connected Mac/PC
24 simultaneous inputs (10 combo ¼” TRS/XLR, 10 XLR, 2 line level, 2 digital)
4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on input channels
31-band graphic EQ, noise gate, compressor, and dbx® AFS2 Automatic Feedback Suppression on all outputs
Real-time frequency analyzer (RTA) on inputs and outputs
Compatible with Mac/PC DAWs and other music software
Compatible with Harman Connected PA application and system for easier setup and control
4U rackmount design
