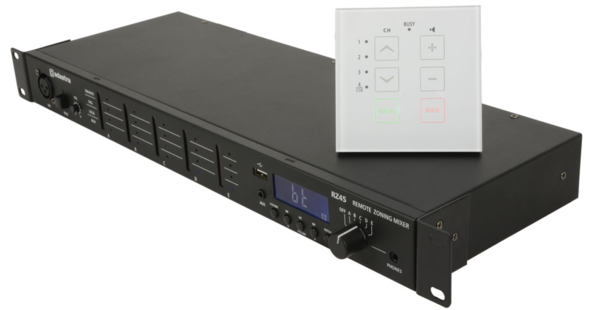

Remote Zone Audio Matrix with Wall controller

RZ45 Remote Zone Audio Matrix with Bluetooth

1U rack-mountable audio matrix with 4 selectable inputs to 5 output zones. An inbuilt media player section features playback from USB media, 3.5mm aux input or Bluetooth. A TR86 touch operated remote wall plate is included to control source and output level for one of the zones. Additional TR86 wall plates may be added up to the full 5 zones as required. Outputs to zones can be monitored via an assignable 3.5mm stereo headphone output. For global alerts and announcements, a front and rear XLR input is provided for a microphone, operated via a paging button that overrides the selected or local audio source for all zones. The RZ45 forms the command centre for installations ranging from basic remote control to a fully specified multi-room audio matrix.

• Up to 5 remotely operated zones
• Remote wiring via standard network type cable
• 4 selectable input sources or local audio to any zone
• Inbuilt USB audio player with Bluetooth
• Emergency mute and audio in contacts
• Supplied with one touch remote wall plate (expandable up to 5)

Power supply 240Vac, 50Hz (IEC lead included)

• Fuse: T1AL
• Audio source: USB/Bluetooth media player
• Bluetooth: versionv2.0
• Inputs: Paging mic. (XLR) + 3 x stereo line (RCA)
• Microphone: input sensitivity-41dBV
• Line input: sensitivity-12.5dBV
• Call station input: sensitivity+4dBV
• Emergency control: 24V mute contacts and emergency audio input
• EMG input: sensitivity-10dBV
• Signal to noise ratio: mic65dB
• Signal to noise ratio: line73dB
• Outputs: 5 x stereo zones (RCA)
• Output impedance: line600 ohms
• THD +N<0.1% @ 1kHz
• Monitor outputs: Stereo 3.5mm headphone jack (assignable)
• Phantom power: +24V switchable for paging mic.
• Remote control connection: 8P8C (RJ45)
• Frequency response: ±3dB20Hz - 20kHz
• Attenuation: -30dB (paging)
• Dimensions: 483 x 177 x 44mm
• Weight: 1.76kg
