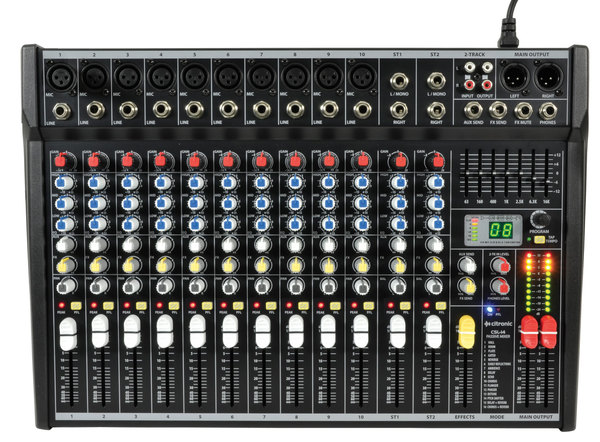

CSL-14 Mixing Console 14 input
Product Code: 170.855
$599.00
Pay it in 4 payments of $149.75 with
CSL-14 Mixing Console 14 input
Compact mixing consoles with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.
For a rugged ABS case, check out 171.866
- 24-bit 16 program DSP effects
- 48V phantom power for XLR inputs
- 3-band EQ per channel
- 7-band global graphic EQ
- IEC mains powered
- Balanced main outputs
- 19" rack-mounting ears available: 170.846-7-8UK
- Power supply 230Vac, 50Hz (IEC)
- Phantom power+48V (XLR inputs)
- Power consumption 25W
- Fuse T1AL
- Input level+24dBu
- Output level : line+26dBu
- Frequency response 20Hz-30kHz (0.5dB)
- CMRR>74dB (mic 1kHz)
- THD +N<0.01% (channel to main out)
- Crosstalk>85dB (fader mute), >82dB (channel)
- Noise rms : 22Hz-22kHz-122dBu (EIN), -82dBu (mix)
- EQ: high 12kHz ±15dB shelving
- EQ: mid 2.5kHz ±15dB band pass
- EQ: low 80Hz ±15dB shelving
- Input impedance : mic (balanced)2k Ohms
- Input impedance : line (balanced)10k Ohms
- Sensitivity : mic-60 to +14dBu
- Sensitivity : line-40 to +14dBu
- 2-track 2 x RCA in & out (-2dBu)
- Effects 16 program DSP (24-bit sigma-delta, 40kHz)
- Output impedance<75 Ohms
- Headphone output 6.3mm jack, 30-600 Ohms
