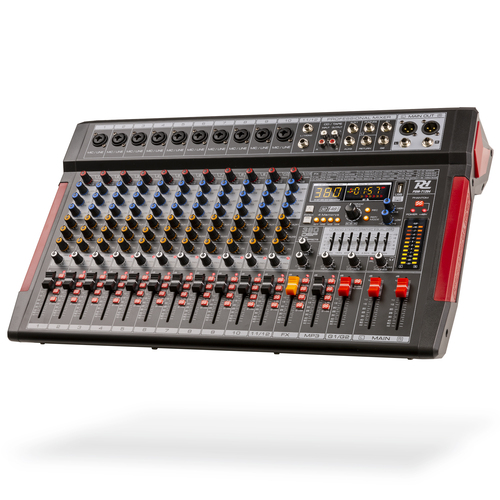

Stage Mixer 12-Channel DSP/MP3
Product Code: 172.664
$549.00
Pay it in 4 payments of $137.25 with
The PDM-T series is a series of stage mixers equipped with a 32-bit DSP effect processor, stereo 7-band graphic equalizer, BT streaming capability and USB input/output for easy connection to the computer for music recording, etc. It’s also possible to use the one click recording function for easy MP3 recordings on a USB stick. Each channel has its own gain control with treble, mid and bass controls. The microphone preamps offer selectable 48V phantom power on all microphone channels. The PDM-T mixers are designed to provide multi-channel mixing capabilities for bands, musicians, sound engineers, conferences, studio recording and a variety of other live stage applications.
- 12-Channel multipurpose audio mixer
- MP3 recording/playing via full-duplex USB port (one click recording)
- BT receiver for audio streaming
- +48V phantom power
- Stereo 7-band graphic equalizer
- 380 DSP multi effects with 4 memories
- USB to PC for record and play music (USB interface)
- 12x Microphone-/line input (Combi XLR/Jack)
- High, Mid and Low control for each channel
- Adjustable Pan, aux return input and FX send output
- Adjustable headphone output
- Stereo balanced main outputs (XLR/6.3mm Jack)
- MUTE, PFL (Pre-fader listening), L/R, G1/G2 control on each channel
- LED VU meter and Peak LEDs
Product colour | Black |
---|---|
Playback options | BT streaming, USB |
Input connections | 6.3mm Jack, RCA, USB, XLR (3-pin) |
Output connections | 6.3mm Jack, RCA, USB, XLR (3-pin) |
Presets | 380 |
DSP Resolution | 32-bit |
Frequency response | 20Hz - 20.000Hz |
THD | <0,5% |
Equalizer | 7-Bands |
Equalizer: Low | 80Hz +15dB |
Equalizer: High | 12KHz +15dB |
Power supply | 240VAC 50Hz |
Dimensions (L x W x H) | 377 x 580 x 120 mm |
Weight | 5,95 |
