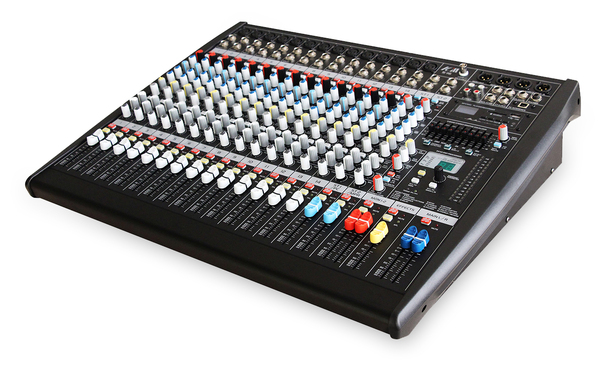

E-Lektron S Series 18 Input Mixer - 14 mono 2 stereo

16 DSP and USB port, MP3 player/record

Product Code: S-16

$999.00

Pay it in 4 payments of $249.75 with Afterpay

Buy 1+ $999.00 (incl. GST)
Store Stock:
Henderson In Stock
Albany In Stock
E-Lektron S Series 18 Input Mixer

On Sale - Save $100.00 !! normally $1099.00



S series mixers are equipped with quite a number of functions such as USB ports, MP3 player/recorder, 24BIT DSP effectors.

S-16 is has 18 channel input, among which 14 channels are mono input channels, and 2 channels are stereo input channels.


● No-noise pre-amplifier with extremely low distortion and a very wide gain range, extremely high dynamic response and musicality.
● Pure 3-band equalizer with its mid-band as parametric equalizer, correct musical control power.
● MP3 player/recorder is compatible with multi audio format; SD/USB ports provide good sound quality and concise man-to-machine communication interfaces.
● 16 kinds of parameter adjustable 24bit DSP effects processor with each parameter being set by the user and memorized automatically.
● It uses 15-band level display bars (mono-channels 10) controlled by a single-chip micro computer (MCU). With a strong monitor system, it is very convenient
to monitor the level of every input or output signal. In the meantime, the peak preserving technology can sensitively catch each dynamic moment of the music, thus maintaining a more precise and safer management of the signal strength of the whole audio system.
● High-quality and high-precision 100mm-long fader can precisely adjust the matching level of the channel.

Specifications

Maximum input level Mic +22dBu Other Line +20dBu
Maximum output level Main XLR +28dBu Other output +22dBu
Meters 3 colour LED , quast peak response
Sensitivity 0VU=+4dBu
Master meter 15 segment, -30dB to+12dB
Channel meter Green LED, sig; Red LED, clip
Frequency response +/- 1dB, 20Hz-30KHz
Mic CMRR at 1kHz >70dB typical
THD+n at+14dBu at 1kHz Mic to mix out <0.005%
Crosstalk (@1KHz) Fader shutoff >89dB Mute shutoff >89dB
Noise, rms 20Hz to 20kHz Mic input E.I.N -129dBu Main mix fader unity, channel fader down <-95dBu(-97dB S/N) Main mix fader unity, channel fader unity <-82dBu(-86dB S/N)
Channel HPF 18dB/oct below 75Hz
Mono EQ HIGH Shelving +/-15dB, 12kHz MID Peaking +/-15dB, 100Hz to 8kHz LOW Shelving +/-15dB, 80kHz
Stereo EQ HIGH Shelving +/-15dB, 12kHz HIGH-MID Peaking +/-15dB, 3kHz LOW-MID Shelving +/-15dB, 500kHz LOW Shelving +/-15dB, 80kHz
DSP Converter 24-bit sigma-delta, 64/128-times oversampling Sampling rate 40kHz
USB Audio Stereo ln/Out Connector Type B Converter 16-bit Sampling rate 48kHz
Power SUPPLY 240 VAC,50/60Hz
Power Consumption 50 watts
Fuse 100-240VAC,T 1.6A, 250V,5x20mm
