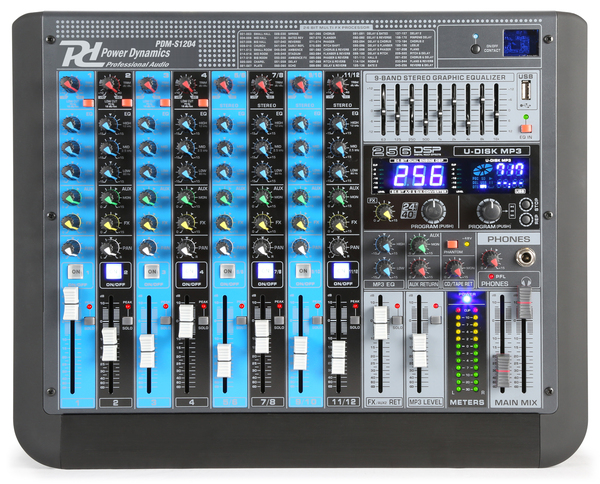

PDM-S1204 12-Channel Professional Analog Mixer
Product Code: 172.624
The Power Dynamics PDM-S1204 12-channel mixing console with 24-bit multi-FX processor is perfect for professional mixing of various music sources. This multi-channel mixer is equipped with a built-in BT receiver with smartphone holder and an MP3-compatible USB port. 12 channels for a variety of external audio accessories such as microphones and line equipment can be mixed to create a unique sound experience using a comprehensive effects section. The optimum sound control of all output signals is guaranteed at all times thanks to a 9-band equalizer. Even condenser and ribbon microphones work perfectly with a switchable + 48V phantom power. The PDM-S1204 is the ideal all-round mixer for studio applications of all kinds, and convinces both beginners and professionals alike with its diverse capabilities.
- 6 Balanced mono microphone inputs (XLR)
- 4 Balanced mono line inputs (6.3mm Jack)
- 4 Balanced stereo line inputs (6.3mm Jack)
- +48V phantom power
- Stereo line input (RCA)
- 75Hz Low cut filter channel 1-4
- Multi-FX processor with 256 presets
- Solo switch per channel (PFL)
- On/off switch per channel
- Hi, Mid and Low control for each channel
- FX inserts on each channel
- Aux send per channel
- Adjustable Pan per channel
- 9-band Equalizer
- Stereo balanced main outputs (XLR + 6.3mm Jack)
- Separate control room, headphones and stereo rec outputs
- Built-in USB player with digital display
- BT-receiver for audio streaming
- LED VU meter and Peak LED's
- Supplied with telephone holder
| Product colour | Black |
|---|---|
| Playback options | BT streaming, USB |
| Input connections | 6.3mm Jack, RCA, USB, XLR (3-pin) |
| Output connections | 6.3mm Jack, RCA, XLR (3-pin) |
| Presets | 256 |
| Type of effects | Ambience, Chapel, Chorus, Delay, Early reflex, Echo, Flanger, Gated reverse, Hall, Leslie, Phaser, Ping pong delay, Pitch, Plate, Reverb delay, Room, Spring, Stadium |
| DSP Resolution | 24-bit |
| Frequency response | 10Hz - 45.000Hz |
| THD | <0.01% |
| Input level: Mic. | 1.5mV, 2 kOhm |
| Input level: Line | 150mV, 100 kOhm |
| Signal-to-noise ratio | >112dB |
| Output level: Master | 1V |
| Power supply | 240VAC 50Hz |
| Dimensions (L x W x H) | 335 x 410 x 95mm |
| Weight (kg) | 4,30 |
