CMC-series Mixing Consoles DSP & USB/PC/BT Player

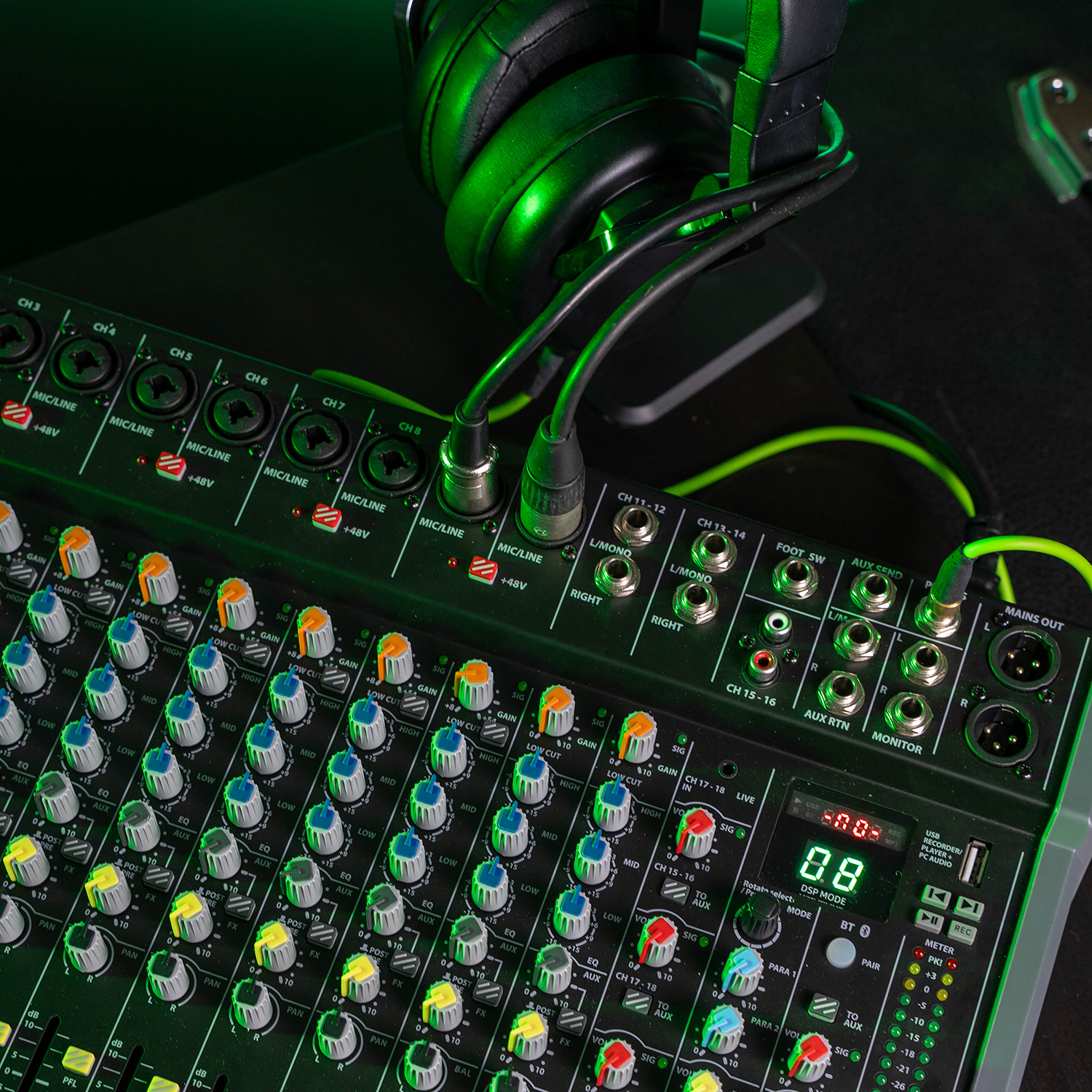

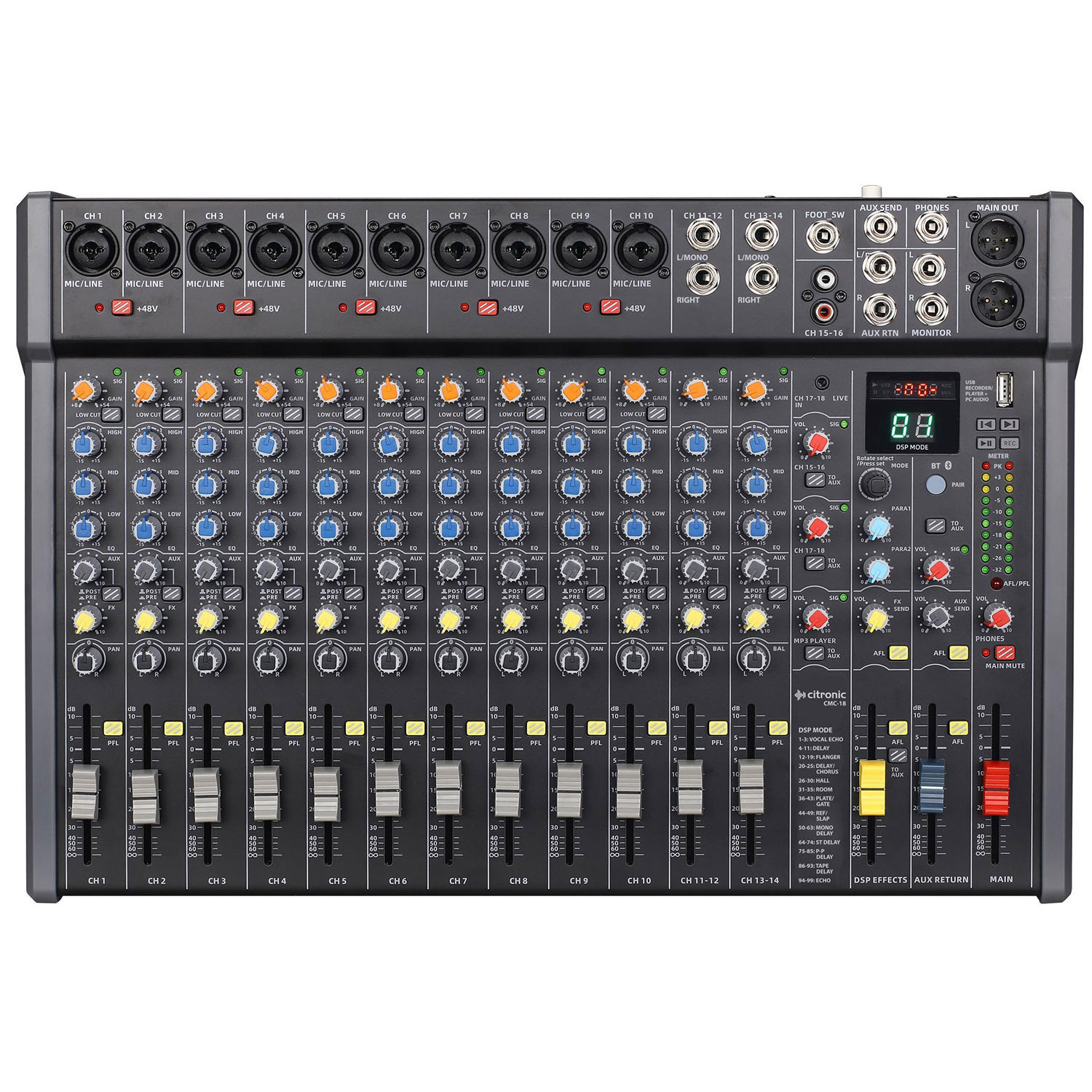

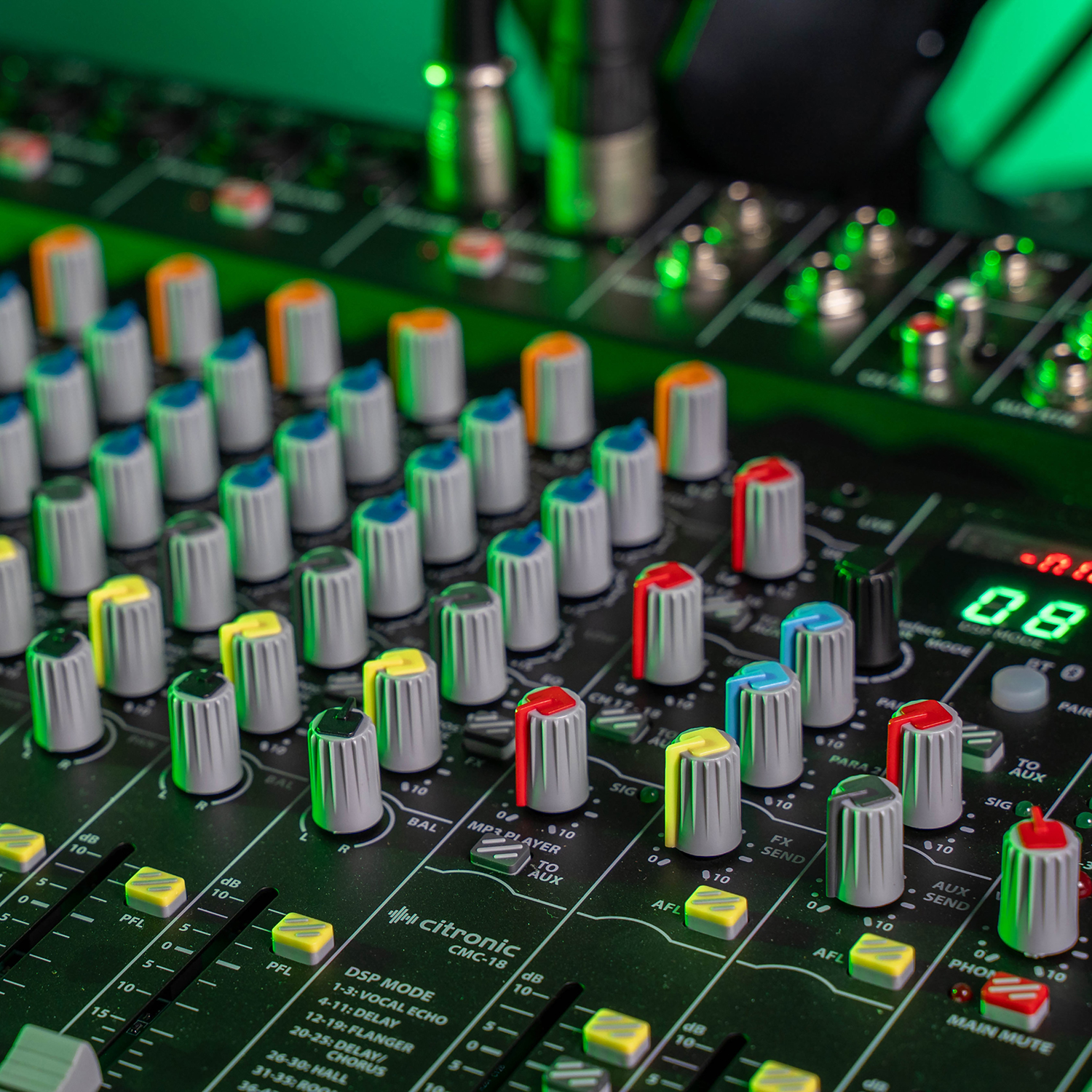

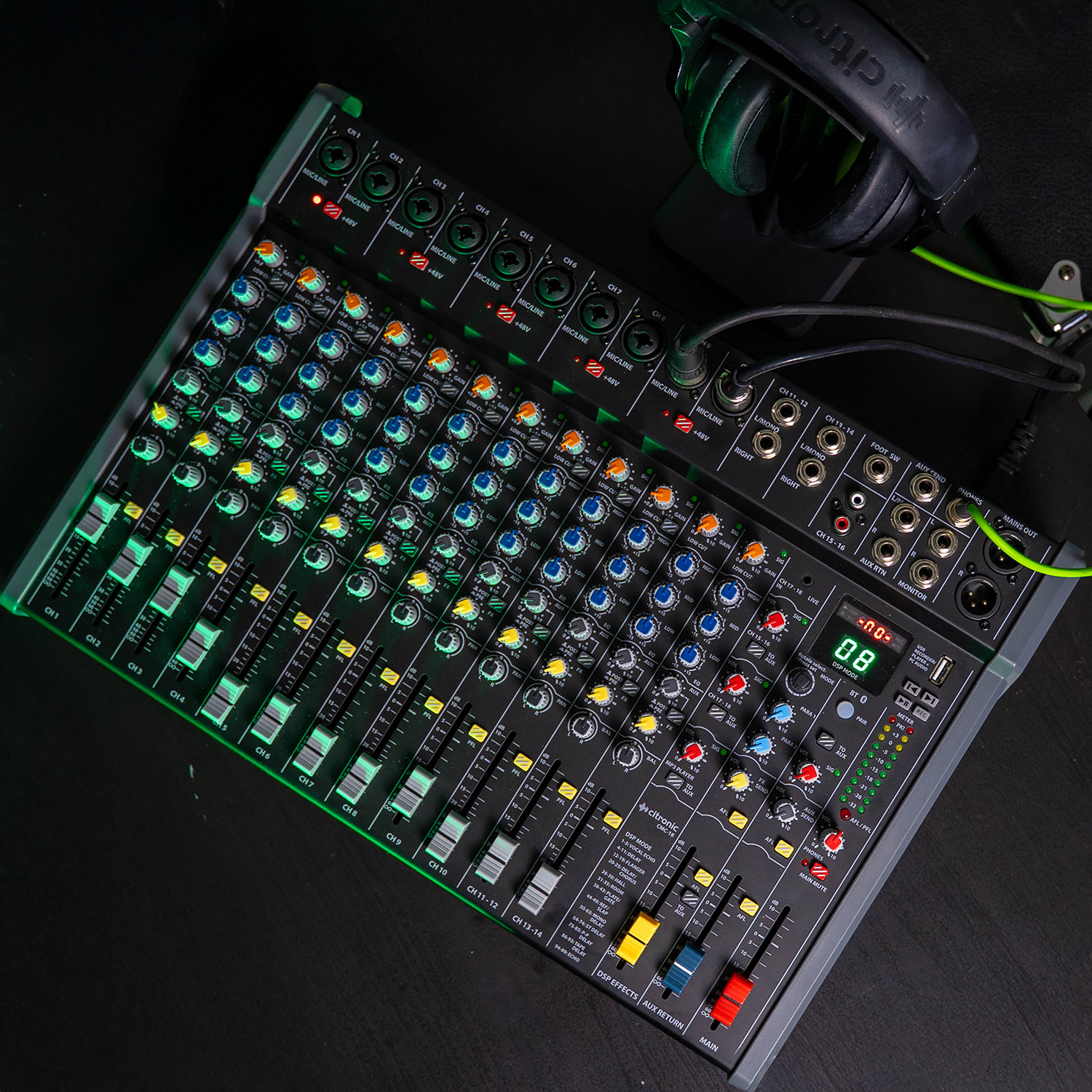

Fully featured audio mixer with 6, 8, or 10 mono input channels, 2 stereo line inputs, stereo Aux input and a further minijack stereo input. Each mono mic/line channel has a combo XLR/jack input with +48V phantom power switchable in pairs for the XLR inputs. Each mic/line channel has a Gain control for matching the input source and a low-cut switch to filter out rumble or handling noise from microphones. Each mono channel also has High/Mid/Low EQ controls, Aux out level, FX level, Pan control and a 60mm channel fader. The onboard foot-switchable DSP effects engine has 99 presets for delay, reverb and modulation effects, each of which can be adjusted using two parameter controls. An onboard Bluetooth receiver has an illuminated pairing button and independent volume control. The USB type-A port on the top panel is for playback of audio files or can be used to record the main outputs to a USB storage device or as an external audio device when connected to a laptop. Main output is served by left & right XLR, in addition to 6.3mm monitor and headphone outputs and the Aux send & stereo return loop. The CMC-series is a comprehensively equipped mixing console for live sound engineers, project studios, and entertainment venue installations.

• DSP effect section with 99 adjustable presets
• USB mp3 audio player/recorder
• Bluetooth receiver with independent volume control
• PC/Mac audio device and aux power via USB A connection
• 3-band EQ per channel
• Independent Pre/Post Aux send + stereo return
• Switchable +48V phantom power
• Balanced XLR/Jack mono inputs
• PFL switch per channel

• Weight4.10kg
• Dimensions455 x 310 x 80mm
• Inputs : Mic/Line10 x XLR/6.3mm jack

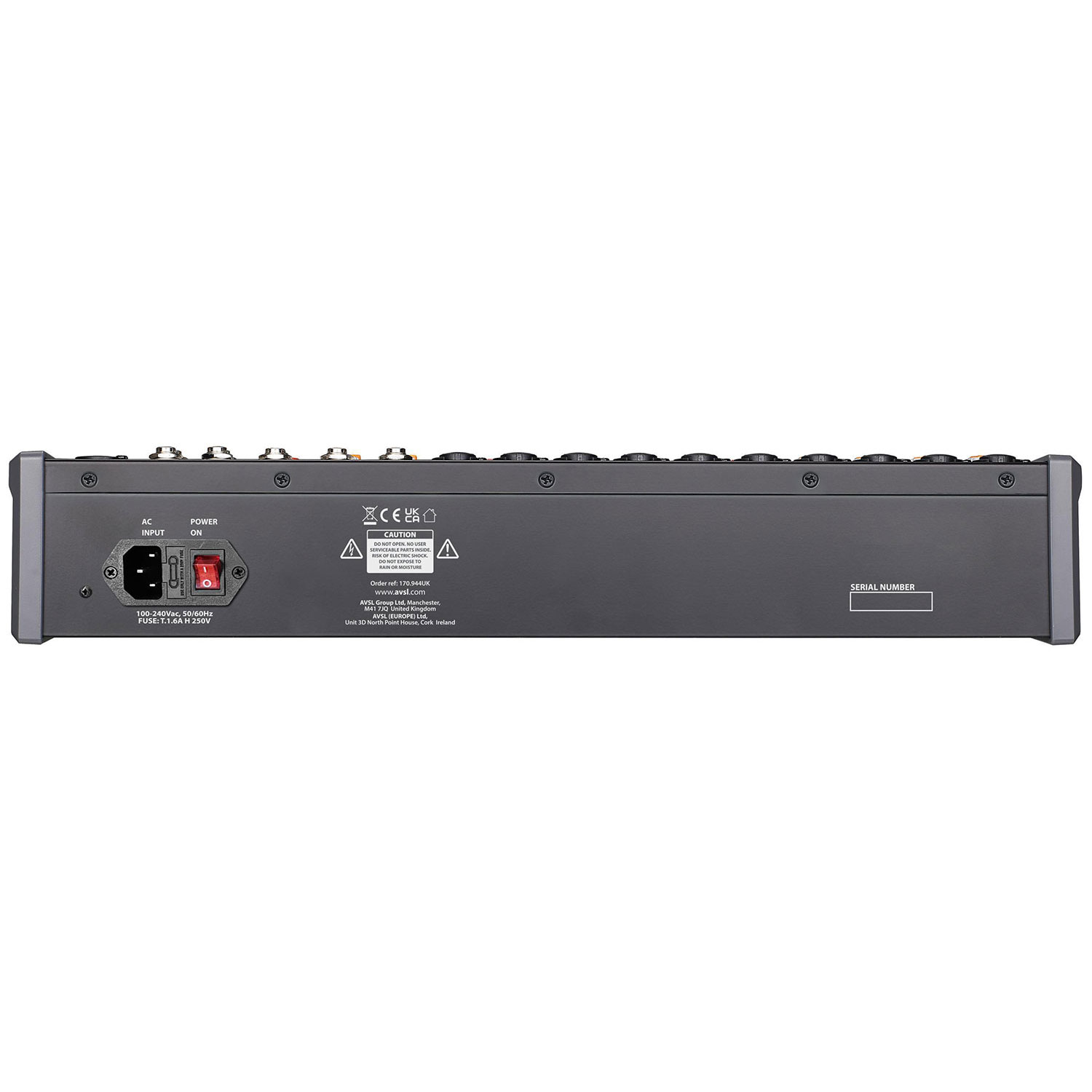

• Power supply100-240Vac, 50/60Hz (IEC)
• FuseT1.6AH

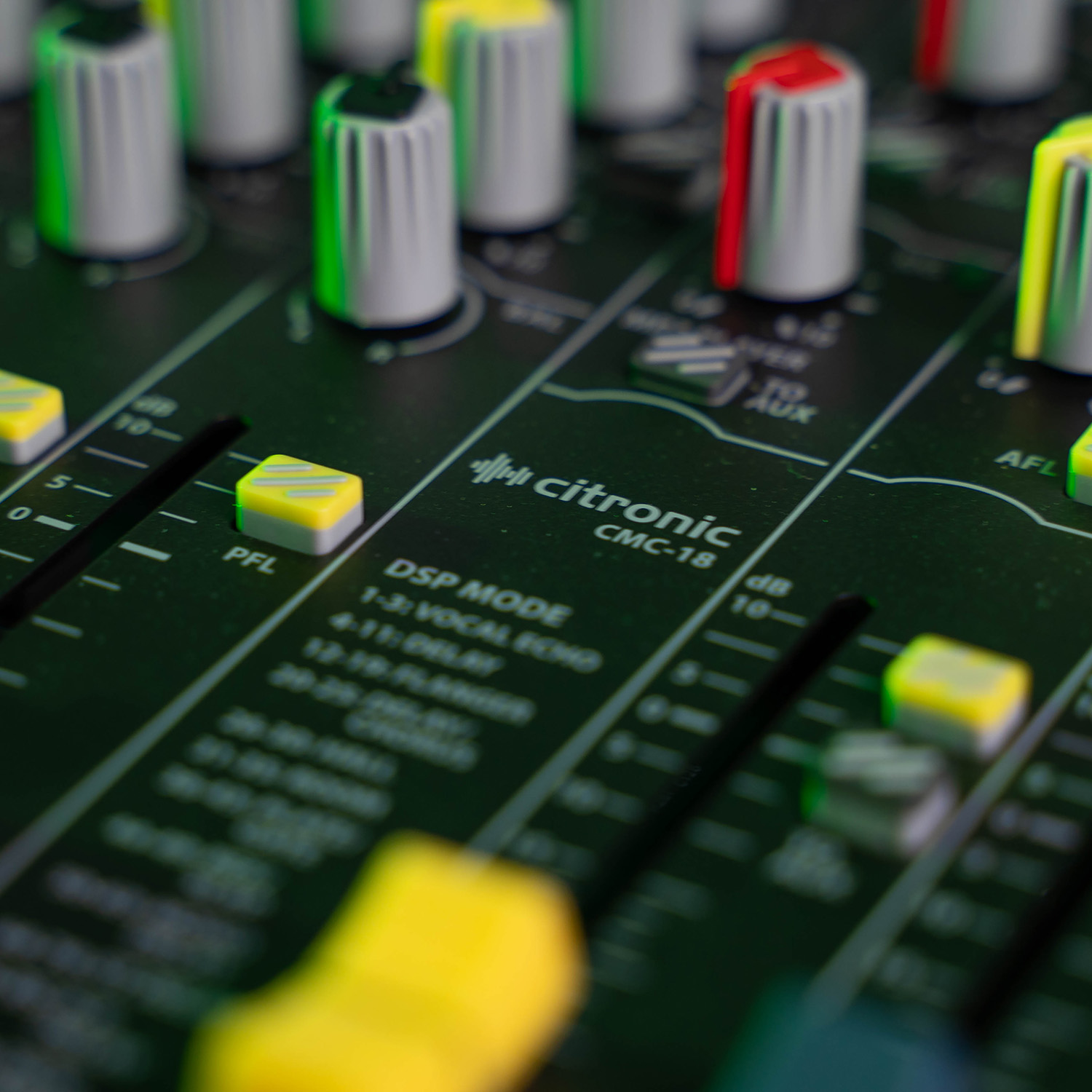

• Effects 99 program DSP (2 parameter controls)
• Inputs : Line2 x stereo L+R 6.3mm, stereo RCA + stereo 3.5mm
• Audio source Bluetooth receiver, USB mp3 player/recorder
• Bluetooth versionv 5.1 (+BR+EDR+BLE)
• EQ: low±15dB @ 80Hz
• EQ: mid±15dB @ 2.5kHz
• EQ: high±15dB @ 12kHz
• Phantom power +48V switchable in pairs (XLR inputs only)
• Frequency response 20Hz - 22kHz (±1dB)
• Input level Mic +10dBu max. / Line +22dBu max.
• Input impedanceBalanced XLR 2k Ohm, Balanced TRS jack 10k Ohm (unbal 20k Ohm)
• THD +N<0.05% @ 1kHz
• Noise EIN -122dBu (22Hz - 22kHz)
• CMRR >75dB (Mic 1kHz)
• Sensitivity XLR -60 to +10dBu, TRS jack -20 to +20dBu, Stereo -20 to +14dBu
• Crosstalk >80dB (1kHz fader shutoff)
• Outputs Main L+R XLR, L+R Monitor 6.3mm, Headphones 6.3mm
• Max. output level XLR +22dBu, TRS +20dBu
• Sends  : returns1 Aux send, L+R return
