18 Channel Mixer with USB/BT Player + DSP Effects
14 Balanced Mono, 2 sets Stereo inputs
Product Code: 170.885
$629.00
Pay it in 4 payments of $157.25 with

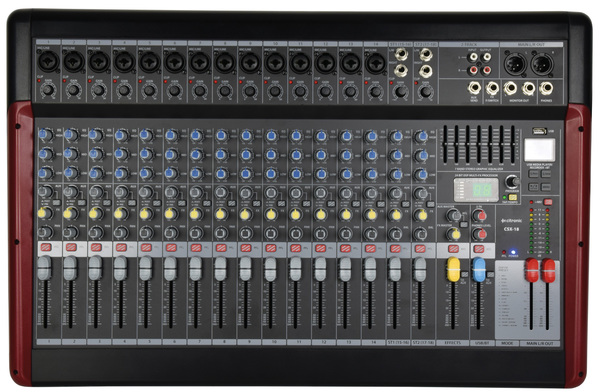

CSX-18 Live Mixer with USB/BT Player + DSP Effects
Fully featured live mixing console with 14 mono mic/line inputs on XLR/jack and 2 stereo line jack inputs. All channels have gain, 3-band EQ, switchable pre/post aux output, FX send, pan, PFL switch and 60mm channel faders. Phantom power is switchable to all XLR inputs for condenser microphones and active DI boxes. Internal effects take the form of a 16-program 24-bit DSP engine with independent level fader and AFL switch for monitoring. An inbuilt media player can accept a USB memory stick for playback of stored audio tracks and can also record the mix output for documenting rehearsals or performances. B/T wireless compatibility enables pairing with a smart phone or tablet for remote playback. Global EQ is handled by a 7-band graphic EQ and the overall mix is fed from master faders to left & right balanced XLR outputs. A 2-track RCA line input has a level control for mixing in a playback source. 2-track RCA output can be connected on to recording equipment or as an additional output feed if required. Low noise and clean audio path with enough features and routing options for live performances, conferences and theatre productions.
- Integral USB player/recorder with BT receiver
- 24-bit DSP effects with 16 programs
- 14 mono balanced XLR/jack inputs
- 2 stereo jack inputs
- 7-band graphic EQ
- Switchable +48V phantom power
- Power supply240Vac, 50Hz (IEC)
- FuseT3AL @ 230V / T6AL @ 115V
- Power consumption max.30W
- Input level+24dBu (mic/line), +20dBu (stereo line) max.
- Phantom power+48V globally switched to XLR inputs
- EQ: high12kHz ±15dB (shelving)
- EQ: mid2.5kHz ±15dB (band pass)
- EQ: low80Hz ±15dB (shelving)
- 2-trackL+R RCA, 4k Ohm, -2dBu
- EQ master bands63, 160 , 500, 1k, 2.5k, 6.3k, 16k (all in Hz)
- Output level+26dBu (XLR), +20dBu (TRS jack) max.
- Output : masterXLR balanced, ?75 Ohm, +4 dBu, Max.+22 dBu
- REC outputL+R RCA, <75 Ohm, -2dBu
- Headphone impedance30-600 Ohms
- DSP effects processor 24-bit sigma-delta, 64/128 times over-sampling,40kHz
- Frequency response20Hz - 30kHz (-0.5dB)
- Channel crosstalk>82dB
- CMRR>75dB (Mic @ 1kHz)
- THD +N<0.01% (Channel to mix out)
- Noise rms : 22Hz-22kHEIN -122dBu, Residual output ?-90dBu, Main/Aux mix ?-82dBu
- Dimensions622 x 402 x 108mm
- Weight 6.3kg
