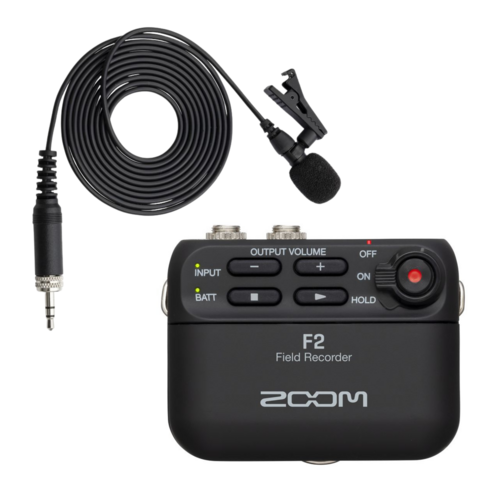

F2 Field Recorder & Lavalier Mic
(Non-Bluetooth Version)
Product Code: ZOOMF2
Built for Big Things
OUTPUT
RECORDING MEDIA
RECORDING FORMAT
USB
POWER
MISCELLANEOUS
LMF-2
LAVALIER MIC
For podcasters, videographers, bloggers, journalists and more, the F2 is the perfect audio solution for creators on the move.
F2 Features- Light and compact audio recorder
- 32-Bit Float recording for full dynamic range and clip free recording
- No gain adjustment necessary
- Records 44.1kHz/32-bit float or 48kHz/32-bit float audio files
- Rec Hold function to avoid accidental operation of buttons
- 1/8" Mic In mini phone jack with Plug-in power (2.5V)
- Stereo ⅛" Phone/Line Output jack with dedicated volume control
- 80 Hz low cut filter
- High precision internal clock to avoid audio and video syncing issues
- Records directly to micro SD, SDHC and SDXC cards up to 1 TB
- USB-C for connection to F2 Editor for settings
- Built-in Bluetooth for connection to the F2 Control app for settings adjustment and remote transport control (F2-BT model only)
- Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
- Up to 15 hours of operation (14 hours on the F2-BT) with two AAA alkaline batteries
Specs F2 INPUT
| CONNECTOR: | 3.5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V) |
| INPUT GAIN: | None (dual AD conversion system) |
| INPUT IMPEDANCE: | 2 kΩ or more |
| MAXIMUM INPUT LEVEL: | −5.5 dBu |
| CONNECTOR: | 3.5 mm stereo mini (with screw lock) |
| MAXIMUM OUTPUT LEVEL: | 20 mW + 20 mW (into 32Ω load) |
| CARDS COMPATIBLE WITH MICROSD/MICROSDHC/MICROSDXC SPECIFICATIONS (CLASS 4 OR HIGHER, 1 TB MAXIMUM) | |
| WAV: | 44.1kHz/32-bit float, 48kHz/32-bit float Mono, BWF format supported |
| USB TYPE-C | |
| MASS STORAGE OPERATION | USB 2.0 High Speed |
| PC APP OPERATION | USB 2.0 High Speed |
| 2 AAA BATTERIES (ALKALINE, LITHIUM OR RECHARGEABLE NIMH BATTERIES) AC ADAPTER (ZOOM AD-17): DC 5 V/1 A | |
| CONTINUOUS RECORDING TIME WHEN USING LAVALIER MIC (48KHZ/32-BIT FLOAT): | Alkaline batteries: about 14 hours |
| NiMH batteries (750 mAh): about 10 hours Lithium batteries: about 18 hours | |
| • The above values are approximate. | |
| EXTERNAL DIMENSIONS: | 57.5 mm (W) × 46.4 mm (H) × 22.4 mm (D) |
| WEIGHT (MAIN UNIT ONLY): | 32 g |
| CONNECTOR: | 3.5 mm stereo mini (with screw lock) |
| DIRECTIONALITY: | Omnidirectional |
| SENSITIVITY: | –32 dB/Pa at 1 kHz |
| MAXIMUM SOUND PRESSURE INPUT: | 115 dB SPL |
| CABLE LENGTH: | 160 cm |
What’s in the Box
Here’s what you get.
- F2 or F2-BT Field Recorder
- LMF-2 Lavalier Microphone
- 3 - WSL-1 Windscreen
- MCL-1 Mic Clip
- F2/F2-BT Operation Manual
