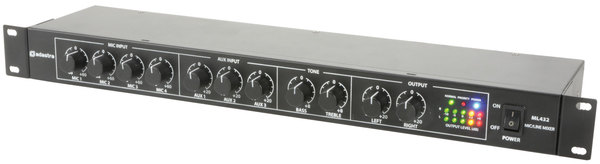

MIC/LINE Rack Mixer - 1U High
with 4 Mic and 3 Auxiliary Inputs
Product Code: 953.024
Rack-mountable 1U mixer with 4 mic inputs and 3 auxiliary inputs. Mic channel 1 has 20V phantom power and adjustable voice-over muting of auxiliary channels. An additional priority input can be connected to a line level input or an external 100V line PA system for emergency paging. Output connections are stereo jack with master bass and treble tone controls. Designed as a master or extension mixer for installed sound systems.
- 4 balanced microphone inputs
- +20V phantom power on priority mic input
- 3 stereo aux line inputs
- Can tap from an existing 100V PA system
- 24Vdc power option
| Power supply | 240Vac, 50Hz (IEC) or 24Vdc (terminals) |
|---|---|
| Fuse | T1AL 250V (mains) or F500mA (24Vdc) |
| Phantom power | +20Vdc (mic1 XLR input only) |
| Inputs : mic | 4 x balanced 6.3mm jack (+XLR for mic1) |
| Inputs : aux | 3 x L+R RCA |
| Inputs : priority | Line level (6.3mm jack), 100V (terminals) |
| Outputs | Left + Right 6.3mm jack (unbalanced) |
| Controls | 4 x Mic level, 3 x Aux level, Treble, Bass, L+R output |
| Rear panel controls | Aux muting level, priority input level |
| Input impedance | 2.2k Ohms (mic/line), 10k Ohms (aux) |
| Frequency response : mic | 130Hz - 21kHz |
| Frequency response : line | 120Hz - 26kHz |
|---|---|
| Frequency response : aux | 50Hz - 35kHz |
| Input sensitivity : mic | -50dBV |
| Input sensitivity : line | -19dBV |
| Input sensitivity : aux | -12dBV |
| Signal to noise ratio : mic | 54dB |
| Signal to noise ratio : aux/line | 58dB |
| THD | 0.05% |
| Dimensions | 482 x 130 x 44mm |
| Weight | 1.43kg |
